- Part Number NUC972DF61Y
- Manufacturer Nuvoton
- Pin Count 216
- Part Category Integrated Circuit
- Package Category Quad Flat Packages

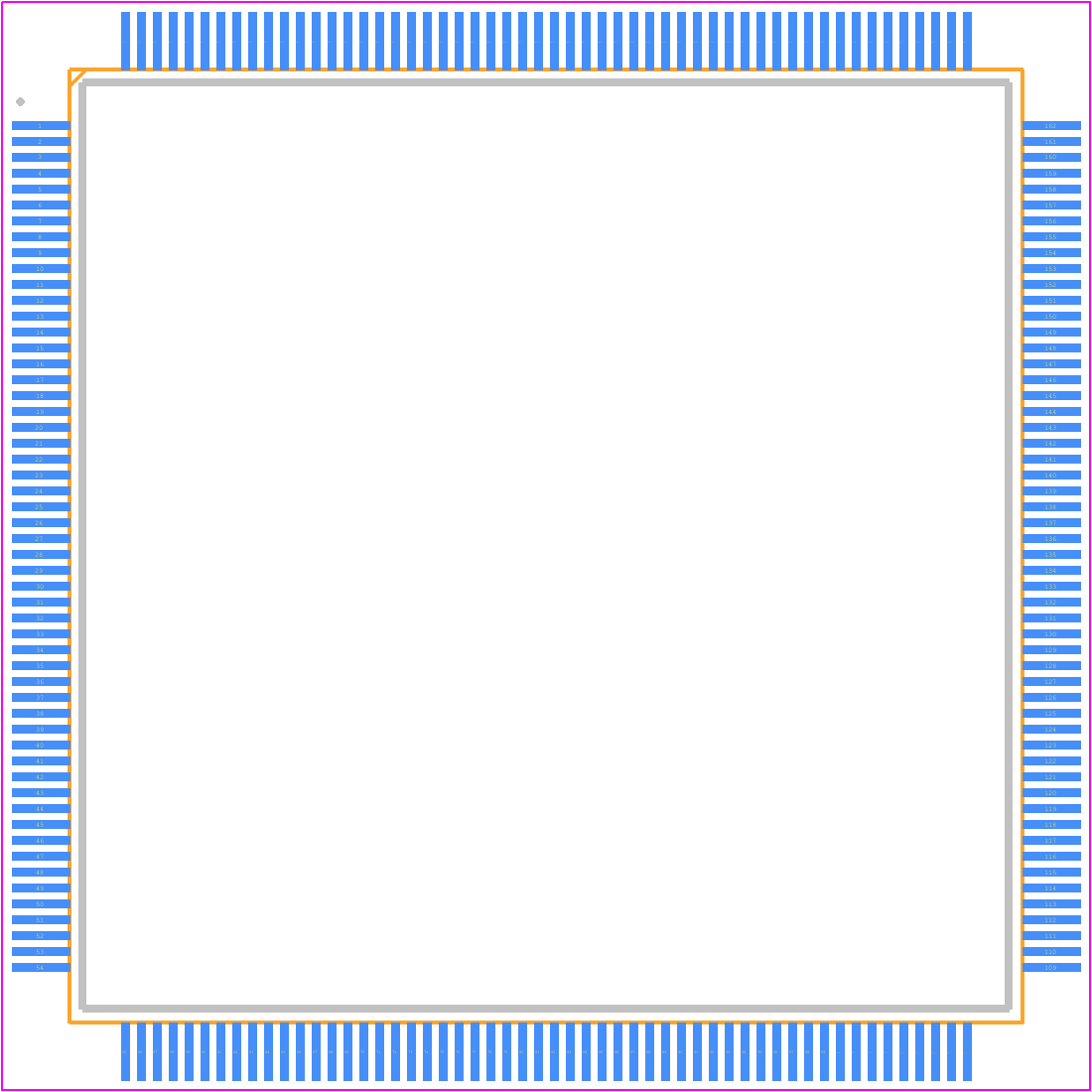

- Footprint Name Quad Flat Packages - 216 LQFP(24*24*1.4MM)
- Released Date Nov 8, 2020
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
NUC972DF61Y Details
-
Manufacturer Part Number:
NUC972DF61Y
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
HTS Code:
8542.31.00.30
-
Manufacturer:
Nuvoton Technology Corp
-
YTEOL:
0
-
uPs/uCs/Peripheral ICs Type:
MICROPROCESSOR, RISC
NUC972DF61Y Frequently Asked Questions (FAQs)
-
The NUC972DF61Y can operate in a temperature range of -40°C to 85°C.
-
The clock source can be configured through the Clock Control Register (CLKCTL). The NUC972DF61Y can use an external crystal oscillator, internal RC oscillator, or external clock source.
-
The maximum frequency of the NUC972DF61Y is 24 MHz.
-
The ADC on the NUC972DF61Y is a 10-bit successive approximation ADC. It can be configured through the ADC Control Register (ADCCON). The ADC can operate in single-shot or continuous conversion modes.
-
Yes, the NUC972DF61Y has a power-down mode that can be enabled by setting the Power-Down Mode bit in the Power Management Control Register (PMCCTL). In power-down mode, the CPU clock is stopped, and the power consumption is reduced.
Trust Checks
Community Provided
System Verified
Community Approved
NUC972DF61Y Overview
Use the download button to access the NUC972DF61Y schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NUC97,
or try a keyword search, such as Microprocessors
