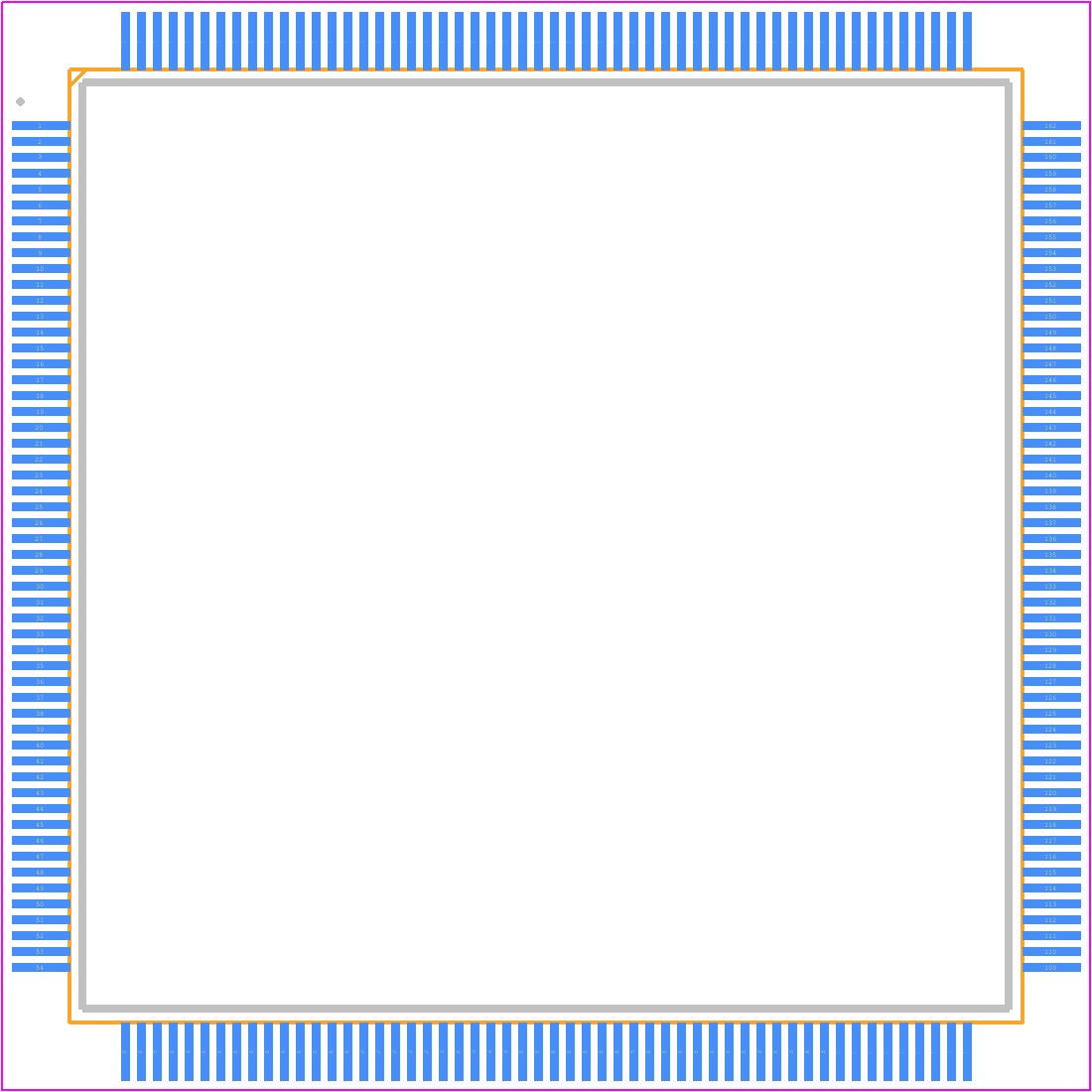

NUC972DF61YC footprint, schematic symbol and 3D model by Nuvoton

Symbol

PCB Footprints

3D Models

NUC972DF61YC Details

The NUC972DF61YC can operate in a temperature range of -40°C to 85°C.
The clock source can be configured through the Clock Control Register (CLKCTL). The NUC972DF61YC can use an external crystal oscillator, internal RC oscillator, or external clock source.
The maximum frequency of the NUC972DF61YC is 24 MHz.
The ADC on the NUC972DF61YC is a 12-bit successive approximation ADC. It can be configured through the ADC Control Register (ADCCON). The ADC can operate in single-shot or continuous conversion modes.
Yes, the NUC972DF61YC has a power-down mode that can be enabled by setting the Power-Down Mode bit in the Power Management Control Register (PWMC). In power-down mode, the CPU clock is stopped, and the power consumption is reduced.
