NUF2230XV6T1G - onsemi

Description: EMI Filtering and ESD Protection; Integration of 10 Discrete Components; Compliance with IEC61000-4-2 (Level 4), > 8.0 kV (Contact); SOT-563 Package; MoistureSensitivity Level 1; This is a Pb-Free Device

Download NUF2230XV6T1G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

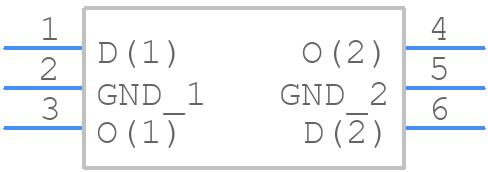

NUF2230XV6T1G - onsemi - PCB symbol
click to zoom
PCB Footprints
NUF2230XV6T1G - onsemi PCB footprint - SO Transistor Flat Lead - SO Transistor Flat Lead - SOT-563 6 LEAD CASE 463A-01 ISSUE O
click to zoom
3D Models
NUF2230XV6T1G - onsemi - 3D model - SO Transistor Flat Lead - SOT-563 6 LEAD CASE 463A-01 ISSUE O
click to zoom

NUF2230XV6T1G Details

  • Manufacturer Part Number:

    NUF2230XV6T1G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOT-563, 6 LEAD

  • Pin Count:

    6

  • Manufacturer Package Code:

    463A-01

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Factory Lead Time:

    6 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    7

  • Additional Feature:

    CUT-OFF FREQUENCY 125 MHZ

  • Capacitance:

    16 µF

  • DC Resistance-Max:

    110 Ω

  • Filter Type:

    DATA LINE FILTER

  • Height:

    0.6 mm

  • JESD-609 Code:

    e3

  • Length:

    1.7 mm

  • Mounting Type:

    SURFACE MOUNT

  • Number of Functions:

    2

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Material:

    PLASTIC

  • Packing Method:

    TAPE AND REEL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Width:

    1.3 mm
