NUF4403MNT1G - onsemi

Description: EMI Filtering and ESD Protection; Integration of 20 Discretes Components; Compliance with IEC61000-4-2 (Level 4)- 18kV Contact and 30 kV Air; DFN Package, 1.6 x 1.6 mm; Moisture Sensitivity Level 1; ESD Ratings: Machine Model = C and Human Body Model = 3B

Download NUF4403MNT1G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

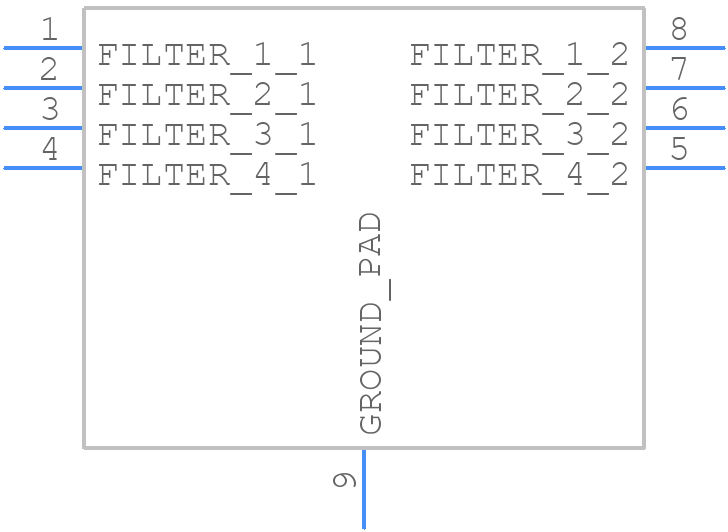

NUF4403MNT1G - onsemi - PCB symbol
click to zoom
PCB Footprints
NUF4403MNT1G - onsemi PCB footprint - Small Outline No-lead - Small Outline No-lead - DFN8 1.60x1.60x0.90, 0.40P CASE 506AK ISSUE D
click to zoom
3D Models
NUF4403MNT1G - onsemi - 3D model - Small Outline No-lead - DFN8 1.60x1.60x0.90, 0.40P CASE 506AK ISSUE D
click to zoom

NUF4403MNT1G Details

  • Manufacturer Part Number:

    NUF4403MNT1G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DFN8 1.6x1.6x0.9 mm, 0.4p

  • Package Description:

    DFN-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    506AK

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Factory Lead Time:

    6 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    7.29

  • Additional Feature:

    CUT-OFF FREQUENCY AT 150 MHZ; PI-TYPE CIRCUIT

  • Approvals:

    IEC

  • Attenuation Frequency-Max:

    800 MHz

  • Attenuation@Freq-Max:

    35 dB

  • Capacitance:

    34 µF

  • DC Resistance-Max:

    115 Ω

  • Filter Type:

    DATA LINE FILTER

  • Height:

    1 mm

  • JESD-609 Code:

    e3

  • Length:

    1.6 mm

  • Mounting Type:

    SURFACE MOUNT

  • Number of Functions:

    4

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Impedance:

    50 OHM Ω

  • Package Material:

    PLASTIC

  • Packing Method:

    TAPE AND REEL

  • Rated Voltage:

    5 V

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Width:

    1.6 mm

NUF4403MNT1G Frequently Asked Questions (FAQs)

  • A thermal pad is recommended under the package to improve thermal performance. A minimum of 2oz copper thickness and a thermal relief pattern are recommended to ensure good heat dissipation.
  • The device requires a stable input voltage and a proper biasing circuit to ensure optimal performance. A voltage regulator and a decoupling capacitor are recommended to ensure a stable input voltage.
  • The device is sensitive to electrostatic discharge (ESD) and can be damaged by excessive voltage or current. Handle the device with an ESD wrist strap or mat, and avoid touching the pins or leads.
  • Use a thermal imaging camera to detect hotspots, and check the input voltage and current to ensure they are within the recommended specifications. Also, verify that the device is properly biased and that the PCB layout is correct.
  • Yes, the input capacitor should be a low-ESR ceramic capacitor with a value of at least 10uF, and the output capacitor should be a low-ESR ceramic capacitor with a value of at least 22uF.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NUF4403MNT1G Overview

Use the download button to access the NUF4403MNT1G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NUF44, or try a keyword search, such as Data Line Filters
