NUP5150MUTBG - onsemi

Description: Obsolete - 6-Line Transient Voltage Suppressor Array

Download NUP5150MUTBG Model

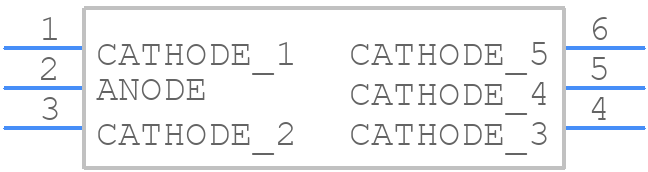

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NUP5150MUTBG - onsemi PCB footprint - Small Outline No-lead - Small Outline No-lead - NUP5150MUTBG-1
click to zoom
3D Models
NUP5150MUTBG - onsemi  - 3D model - Small Outline No-lead - NUP5150MUTBG-1
click to zoom

NUP5150MUTBG Details

  • Manufacturer Part Number:

    NUP5150MUTBG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    UDFN6, 1.2 x 1.0, 0.4P

  • Package Description:

    UDFN-6

  • Pin Count:

    6

  • Manufacturer Package Code:

    517AA

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.10.00.50

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Breakdown Voltage-Max:

    7.2 V

  • Breakdown Voltage-Min:

    6.2 V

  • Breakdown Voltage-Nom:

    6.8 V

  • Configuration:

    COMMON ANODE, 5 ELEMENTS, 5 CHANNEL

  • Diode Element Material:

    SILICON

  • Diode Type:

    TRANS VOLTAGE SUPPRESSOR DIODE

  • JESD-30 Code:

    R-PDSO-N6

  • JESD-609 Code:

    e4

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    5

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Polarity:

    UNIDIRECTIONAL

  • Qualification Status:

    Not Qualified

  • Reference Standard:

    IEC-61000-4-2

  • Rep Pk Reverse Voltage-Max:

    5 V

  • Reverse Current-Max:

    0.1 µA

  • Reverse Test Voltage:

    5 V

  • Surface Mount:

    YES

  • Technology:

    AVALANCHE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED
