NV24C256MUW3VTBG - onsemi

Description: Automotive Temperature Grade 1 (-40°C to +125°C) ; 2.5 V to 5.5 V Supply Voltage Range; This Device is Pb-Free, Halogen Free/BFR Free and RoHS Compliant; Supports Standard, Fast and Fast-Plus I2C Protocol; 64-Byte Page Write Buffer; Hardware Write Protection for Entire Memory; Schmitt Triggers and Noise Suppression Filters on I2C Bus Inputs (SCL and SDA); Low Power CMOS Technology; 1,000,000 Program/Erase Cycles; 100 Year Data Retention; UDFN-8 Wettable Flank Package

Download NV24C256MUW3VTBG Model

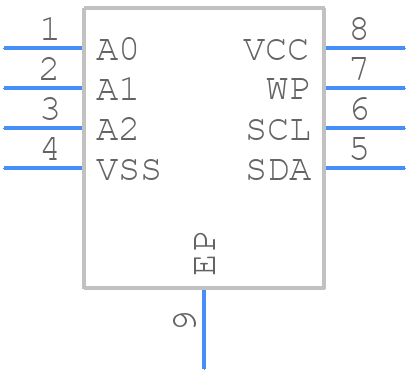

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NV24C256MUW3VTBG - onsemi PCB footprint - Small Outline No-lead - Small Outline No-lead - UDFN8 2x3, 0.5P CASE 517DH ISSUE A
click to zoom
3D Models
NV24C256MUW3VTBG - onsemi  - 3D model - Small Outline No-lead - UDFN8 2x3, 0.5P CASE 517DH ISSUE A
click to zoom

NV24C256MUW3VTBG Details

  • Manufacturer Part Number:

    NV24C256MUW3VTBG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    UDFN-8

  • Package Description:

    UDFN-8

  • Manufacturer Package Code:

    517DH

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Factory Lead Time:

    15 Weeks

  • Date Of Intro:

    2018-05-17

  • Manufacturer:

    onsemi

  • YTEOL:

    5

  • Clock Frequency-Max (fCLK):

    1 MHz

  • Data Retention Time-Min:

    100

  • Endurance:

    1000000 Write/Erase Cycles

  • I2C Control Byte:

    1010DDDR

  • JESD-30 Code:

    R-PDSO-N8

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Memory Density:

    262144 bit

  • Memory IC Type:

    EEPROM

  • Memory Width:

    8

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Ports:

    1

  • Number of Terminals:

    8

  • Number of Words:

    32768 words

  • Number of Words Code:

    32000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    32KX8

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.12,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Parallel/Serial:

    SERIAL

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.55 mm

  • Serial Bus Type:

    I2C

  • Standby Current-Max:

    0.000005 A

  • Supply Current-Max:

    0.003 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.5 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2 mm

  • Write Cycle Time-Max (tWC):

    5 ms

  • Write Protection:

    HARDWARE

NV24C256MUW3VTBG Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the NV24C256MUW3VTBG is 2.7V to 3.6V.
  • The power-up sequence should be VCC first, then VIO. For power-down, the sequence should be VIO first, then VCC. This ensures that the device powers up and down safely and prevents latch-up.
  • The maximum clock frequency supported by the NV24C256MUW3VTBG is 104 MHz.
  • To implement a reliable write operation, ensure that the WE# signal is low, the CE# signal is low, and the OE# signal is high. Also, ensure that the address and data lines are stable before and during the write operation.
  • The WP# pin is a write-protect pin that allows the user to protect the entire memory array from write operations. When WP# is low, the device is in write-protect mode, and no writes are allowed.
