Part Image

NV24C512MUW3VTBG - onsemi

Description: 2.5 V to 5.5 V Supply Voltage Range ; UDFN-8 Wettable Flank Packages; Supports Standard, Fast and Fast-Plus I2C Protocol; 128-Byte Page Write Buffer; Hardware Write Protection for Entire Memory; Schmitt Triggers and Noise Suppression Filters on I2C Bus Inputs (SCL and SDA); Low Power CMOS Technology; 1,000,000 Program/Erase Cycles; 100 Year Data Retention; Automotive Temperature Grade 1 (-40°C to +125°C); This Device is Pb-Free, Halogen Free/BFR Free and RoHS Compliant

Download NV24C512MUW3VTBG Model

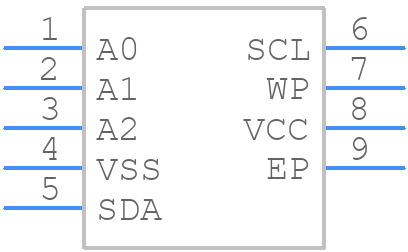

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NV24C512MUW3VTBG - onsemi PCB footprint - Other - Other - NV24C512MUW3VTBG-1
click to zoom
3D Models
NV24C512MUW3VTBG - onsemi  - 3D model - Other - NV24C512MUW3VTBG-1
click to zoom

NV24C512MUW3VTBG Details

  • Manufacturer Part Number:

    NV24C512MUW3VTBG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    UDFN-8

  • Manufacturer Package Code:

    517DH

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Factory Lead Time:

    15 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    5

  • Clock Frequency-Max (fCLK):

    1 MHz

  • JESD-30 Code:

    R-PDSO-N8

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Memory Density:

    524288 bit

  • Memory IC Type:

    EEPROM

  • Memory Width:

    8

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of Words:

    65536 words

  • Number of Words Code:

    64000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    64KX8

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Parallel/Serial:

    SERIAL

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.55 mm

  • Serial Bus Type:

    I2C

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2 mm

  • Write Cycle Time-Max (tWC):

    5 ms

NV24C512MUW3VTBG Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the NV24C512MUW3VTBG is -40°C to 125°C, as specified in the datasheet. However, it's essential to note that the device can tolerate a wider temperature range during storage, which is -65°C to 150°C.
  • To ensure reliable data retention, it's crucial to follow the recommended storage conditions, such as storing the device in a cool, dry place, away from direct sunlight and radiation. Additionally, avoid exposing the device to high temperatures, humidity, or electrical stress during storage or operation.
  • The NV24C512MUW3VTBG supports a maximum clock frequency of 104 MHz, as specified in the datasheet. However, it's essential to ensure that the clock signal meets the recommended AC characteristics, such as rise and fall times, to ensure reliable operation.
  • To ensure reliable operation, it's recommended to follow a controlled power-up and power-down sequence for the NV24C512MUW3VTBG. This includes ramping up the power supply voltage slowly, ensuring that the voltage reaches the recommended operating range before applying the clock signal, and following a similar sequence during power-down.
  • The recommended termination resistors for the NV24C512MUW3VTBG depend on the specific application and operating conditions. However, as a general guideline, onsemi recommends using 22-ohm to 33-ohm termination resistors for the data lines and 47-ohm to 51-ohm termination resistors for the clock line.
