NVD6824NLT4G-UM - onsemi

NVD6824NLT4G-UM Details

• Manufacturer Part Number:

  NVD6824NLT4G-UM

• Brand Name:

  onsemi

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

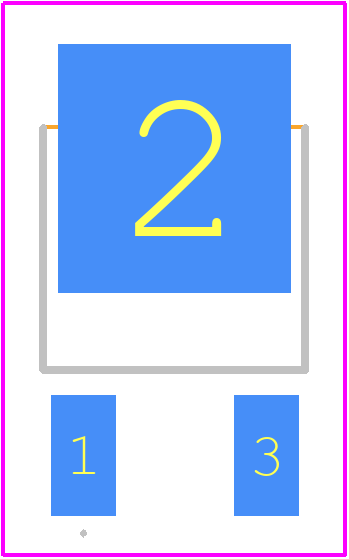

• Part Package Code:

  DPAK-3

• Manufacturer Package Code:

  369AA

• ECCN Code:

  EAR99

• Manufacturer:

  onsemi

• YTEOL:

  6

• Avalanche Energy Rating (Eas):

  80 mJ

• Case Connection:

  DRAIN

• Configuration:

  SINGLE WITH BUILT-IN DIODE

• DS Breakdown Voltage-Min:

  100 V

• Drain Current-Max (ID):

  41 A

• Drain-source On Resistance-Max:

  0.023 Ω

• FET Technology:

  METAL-OXIDE SEMICONDUCTOR

• Feedback Cap-Max (Crss):

  133 pF

• JESD-30 Code:

  R-PSSO-G2

• Number of Elements:

  1

• Number of Terminals:

  2

• Operating Mode:

  ENHANCEMENT MODE

• Operating Temperature-Max:

  175 °C

• Operating Temperature-Min:

  -55 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE

• Packing Method:

  TR

• Polarity/Channel Type:

  N-CHANNEL

• Power Dissipation-Max (Abs):

  90 W

• Pulsed Drain Current-Max (IDM):

  238 A

• Reference Standard:

  AEC-Q101

• Surface Mount:

  YES

• Terminal Form:

  GULL WING

• Terminal Position:

  SINGLE

• Transistor Element Material:

  SILICON
