NVMFS015N10MCLT1G - onsemi

Description: Small Footprint (5x6 mm); Low RDS (ON); Low QG and Capacitance; Wettable Flank Option available; AEC−Q101 Qualified and PPAP Capable; RoHS Compliant

Download NVMFS015N10MCLT1G Model
Schematic

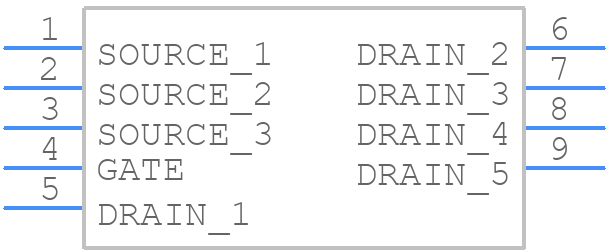

symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NVMFS015N10MCLT1G - onsemi PCB footprint - Other - Other - DFN5-2022
click to zoom
3D Models
NVMFS015N10MCLT1G - onsemi  - 3D model - Other - DFN5-2022
click to zoom

NVMFS015N10MCLT1G Details

  • Manufacturer Part Number:

    NVMFS015N10MCLT1G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SO-8FL / DFN-5

  • Package Description:

    SO-8FL, DFN5, 6 PIN

  • Manufacturer Package Code:

    488AA

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    13 Weeks

  • Date Of Intro:

    2019-01-07

  • Manufacturer:

    onsemi

  • YTEOL:

    5.85

  • Avalanche Energy Rating (Eas):

    469 mJ

  • Case Connection:

    DRAIN

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    100 V

  • Drain Current-Max (ID):

    47.1 A

  • Drain-source On Resistance-Max:

    0.0183 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • Feedback Cap-Max (Crss):

    9 pF

  • JESD-30 Code:

    R-PDSO-F5

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    1

  • Number of Terminals:

    5

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    175 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    59.5 W

  • Pulsed Drain Current-Max (IDM):

    259 A

  • Reference Standard:

    AEC-Q101

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    FLAT

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transistor Element Material:

    SILICON
