NVMTS0D6N04CLTXG - onsemi

Description: Small Footprint (8x8 mm); Low RDS(on); Low QG and Capacitance; Wettable Flank Option; AEC−Q101 Qualified and PPAP Capable; RoHS Compliant

Download NVMTS0D6N04CLTXG Model

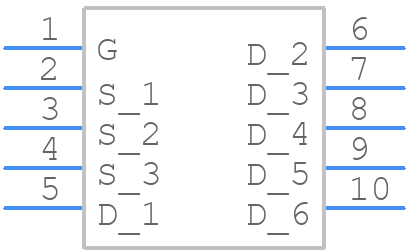

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NVMTS0D6N04CLTXG - onsemi PCB footprint - Other - Other - DFNW8 8.3x8.4, 2P CASE 507AP ISSUE B_2020
click to zoom
3D Models
NVMTS0D6N04CLTXG - onsemi  - 3D model - Other - DFNW8 8.3x8.4, 2P CASE 507AP ISSUE B_2020
click to zoom

NVMTS0D6N04CLTXG Details

  • Manufacturer Part Number:

    NVMTS0D6N04CLTXG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DFNW-8

  • Manufacturer Package Code:

    507AP

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    16 Weeks

  • Date Of Intro:

    2019-01-23

  • Manufacturer:

    onsemi

  • YTEOL:

    5.6

  • Avalanche Energy Rating (Eas):

    2058 mJ

  • Case Connection:

    DRAIN

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    40 V

  • Drain Current-Max (ID):

    554.5 A

  • Drain-source On Resistance-Max:

    0.00066 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • JESD-30 Code:

    R-PDSO-F5

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    1

  • Number of Terminals:

    5

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    175 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    245.4 W

  • Pulsed Drain Current-Max (IDM):

    900 A

  • Reference Standard:

    AEC-Q101

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    FLAT

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transistor Element Material:

    SILICON

NVMTS0D6N04CLTXG Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the NVMTS0D6N04CLTXG is -40°C to 150°C.
  • The recommended PCB layout for the NVMTS0D6N04CLTXG is to use a thermal pad with a minimum size of 2mm x 2mm, and to ensure that the thermal pad is connected to a large copper area to dissipate heat efficiently.
  • To ensure the reliability of the NVMTS0D6N04CLTXG in high-reliability applications, it is recommended to follow the recommended operating conditions, use a suitable thermal management system, and implement a robust design and testing process.
  • The maximum current rating for the NVMTS0D6N04CLTXG is 30A.
  • To prevent damage, it is recommended to handle the NVMTS0D6N04CLTXG by the body, avoid touching the leads or die, and store the device in a dry, cool place away from direct sunlight.
