NVMTS1D2N08H - onsemi

Description: Small Footprint (8x8 mm); Low RDS(on); Low QG and Capacitance; Wettable Flank Option; AEC−Q101 Qualified and PPAP Capable; RoHS Compliant

Download NVMTS1D2N08H Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
NVMTS1D2N08H - onsemi - PCB symbol
click to zoom
PCB Footprints

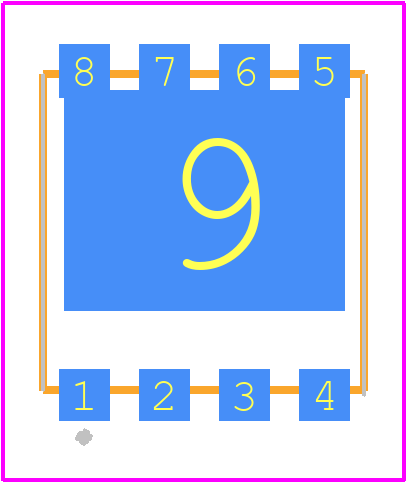

NVMTS1D2N08H - onsemi PCB footprint - Other - Other - NVMTS1D2N08H-2
click to zoom
3D Models
NVMTS1D2N08H - onsemi - 3D model - Other - NVMTS1D2N08H-2
click to zoom

NVMTS1D2N08H Details

  • Manufacturer Part Number:

    NVMTS1D2N08H

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DFNW-8

  • Package Description:

    DFNW-8

  • Manufacturer Package Code:

    507AP

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    17 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    5.9

  • Avalanche Energy Rating (Eas):

    3170 mJ

  • Case Connection:

    DRAIN

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    80 V

  • Drain Current-Max (ID):

    337 A

  • Drain-source On Resistance-Max:

    0.0011 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • Feedback Cap-Max (Crss):

    43 pF

  • JESD-30 Code:

    R-PDSO-F5

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    1

  • Number of Terminals:

    5

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    175 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    300 W

  • Pulsed Drain Current-Max (IDM):

    900 A

  • Reference Standard:

    AEC-Q101

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    FLAT

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transistor Element Material:

    SILICON

NVMTS1D2N08H Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the NVMTS1D2N08H is -40°C to 150°C.
  • To ensure reliability, follow the recommended assembly and soldering guidelines, and ensure that the device is operated within the specified voltage and current ratings. Additionally, consider using a thermal management strategy to keep the device within its recommended operating temperature range.
  • The recommended PCB layout for the NVMTS1D2N08H involves using a thermal pad and thermal vias to dissipate heat. A heat sink or thermal interface material can also be used to improve thermal performance. Consult the onsemi application note for more detailed guidance.
  • When handling the NVMTS1D2N08H, ensure that you follow proper electrostatic discharge (ESD) precautions and use a high-voltage probe or test fixture to prevent damage to the device. Use a variable power supply to gradually increase the voltage and current to the recommended ratings.
  • To ensure EMC, follow proper PCB layout and shielding guidelines, and consider using a common-mode choke or ferrite bead to filter out electromagnetic interference (EMI). Additionally, ensure that the device is operated within its specified frequency range.
