NVT2002TLH - NXP

Description: Voltage Level Translator Bidirectional 1 Circuit 2 Channel 33MHz HXSON8U

Download NVT2002TLH Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

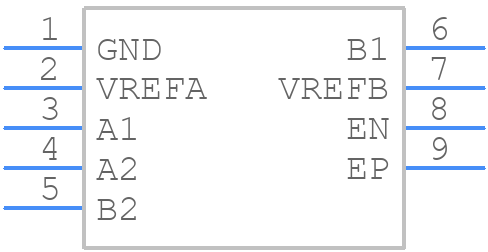

Symbol
NVT2002TLH - NXP - PCB symbol
click to zoom
PCB Footprints
NVT2002TLH - NXP PCB footprint - Other - Other - SOT1052-2 (HXSON8)
click to zoom
3D Models
NVT2002TLH - NXP - 3D model - Other - SOT1052-2 (HXSON8)
click to zoom

NVT2002TLH Details

  • Manufacturer Part Number:

    NVT2002TLH

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    HXSON-8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    5

  • Additional Feature:

    Also Required Vref(B) Supply 1.8 to 5.5V

  • Delay-Max:

    1.5 ns

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    VOLTAGE LEVEL TRANSLATOR

  • JESD-30 Code:

    R-PDSO-N8

  • Length:

    1.7 mm

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    TOTEM-POLE

  • Output Latch or Register:

    NONE

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.05,16

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.5 mm

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    1 V

  • Supply Voltage-Nom:

    1.2 V

  • Supply Voltage1-Max:

    5.5 V

  • Supply Voltage1-Min:

    1.8 V

  • Supply Voltage1-Nom:

    2 V

  • Surface Mount:

    YES

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.35 mm

NVT2002TLH Frequently Asked Questions (FAQs)

  • A good PCB layout for the NVT2002TLH involves keeping the input and output tracks as short as possible, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure proper biasing, connect the VCC pin to a stable voltage source, and decouple it with a 10uF capacitor to ground. The VCC pin should be connected to a voltage source that is within the recommended operating range of 2.3V to 5.5V.
  • The NVT2002TLH can handle a maximum current of 100mA per channel. However, it's recommended to keep the current below 50mA per channel to ensure reliable operation and to prevent overheating.
  • To protect the NVT2002TLH from ESD and overvoltage, use a TVS (Transient Voltage Suppressor) diode or a Zener diode on the input lines. Additionally, use a series resistor and a capacitor to filter out high-frequency noise and transients.
  • The recommended operating temperature range for the NVT2002TLH is -40°C to 125°C. However, the device can operate up to 150°C for short periods of time, but this may affect its reliability and lifespan.
