NVT2006BS,118 - NXP

Description: Translation - Voltage Levels BI VOLT-LVL TRANS OPEN-DRAIN P-P APP

Download NVT2006BS,118 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

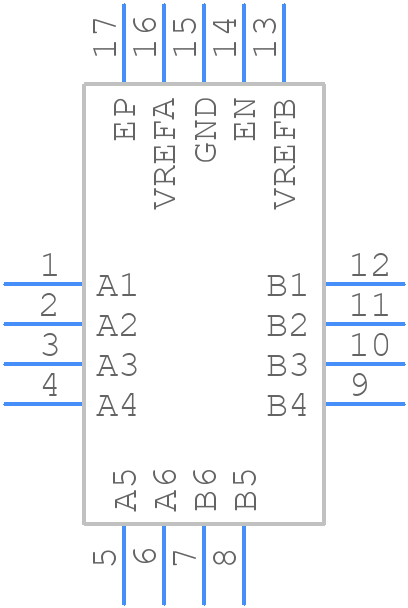

NVT2006BS,118 - NXP - PCB symbol
click to zoom
PCB Footprints
NVT2006BS,118 - NXP PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - SOT758-1
click to zoom
3D Models
NVT2006BS,118 - NXP - 3D model - Quad Flat No-Lead - SOT758-1
click to zoom

NVT2006BS,118 Details

  • Manufacturer Part Number:

    NVT2006BS,118

  • Source Url Status Check Date:

    2013-10-15 00:00:00

  • Brand Name:

    NXP Semiconductor

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    QFN

  • Package Description:

    HVQFN-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    SOT758-1

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    0

  • Additional Feature:

    TOTEM OUTPUT CHARACTERISTIC ALSO POSSIBLE

  • Delay-Max:

    1.5 ns

  • Input Characteristics:

    DIFFERENTIAL

  • Interface IC Type:

    VOLTAGE LEVEL TRANSLATOR

  • JESD-30 Code:

    S-PQCC-N16

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    1

  • Number of Functions:

    6

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    TOTEM-POLE

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    1 V

  • Supply Voltage-Nom:

    1.2 V

  • Supply Voltage1-Max:

    5.5 V

  • Supply Voltage1-Min:

    1.8 V

  • Supply Voltage1-Nom:

    2 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

NVT2006BS,118 Frequently Asked Questions (FAQs)

  • A good PCB layout for NVT2006BS,118 involves keeping the input and output tracks as short as possible, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure EMC with NVT2006BS,118, use a shielded enclosure, keep cables and wires as short as possible, and use ferrite beads or common-mode chokes to filter out electromagnetic interference (EMI). Also, ensure that the device is properly grounded and decoupled.
  • The maximum operating temperature range for NVT2006BS,118 is -40°C to 125°C. However, it's recommended to operate the device within a temperature range of -20°C to 85°C for optimal performance and reliability.
  • Yes, NVT2006BS,118 is designed to withstand high-vibration environments. However, it's essential to ensure that the device is properly mounted and secured to the PCB to prevent mechanical stress and damage.
  • To troubleshoot issues with NVT2006BS,118, start by checking the power supply voltage, input/output signals, and PCB layout. Use oscilloscopes and logic analyzers to debug the issue. Also, consult the datasheet and application notes for guidance on troubleshooting common issues.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NVT2006BS,118 Overview

Use the download button to access the NVT2006BS,118 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NVT20, or try a keyword search, such as Level Translators
