NVT2016N090M2 - onsemi

Description: N-Channel 900 V 148A (Tc) 789W (Tc) Surface Mount T2PAK -55°C ~ 175°C 4.3V @ 20mA

Download NVT2016N090M2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

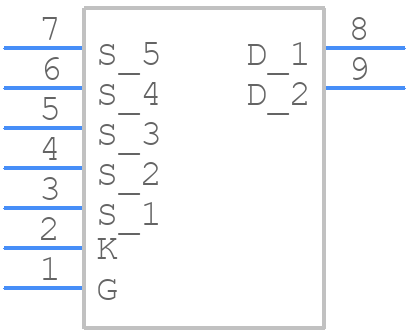

NVT2016N090M2 - onsemi - PCB symbol
click to zoom
PCB Footprints
NVT2016N090M2 - onsemi PCB footprint - Other - Other - T2PAK-7 11.80x14.00x3.50, 1.27P CASE 763AC ISSUE A_2026-2.5
click to zoom
3D Models
NVT2016N090M2 - onsemi - 3D model - Other - T2PAK-7 11.80x14.00x3.50, 1.27P CASE 763AC ISSUE A_2026-2.5
click to zoom

NVT2016N090M2 Details

  • Manufacturer Part Number:

    NVT2016N090M2

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    onsemi

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NVT2016N090M2 Overview

Use the download button to access the NVT2016N090M2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NVT20, or try a keyword search, such as Power Field-Effect Transistors
