NVT4857UKAZ - NXP

Description: RFID Transponders SD 3.0-SDR104 compliant integrated auto-direction control memory card with EMI filter and ESD protection

Download NVT4857UKAZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

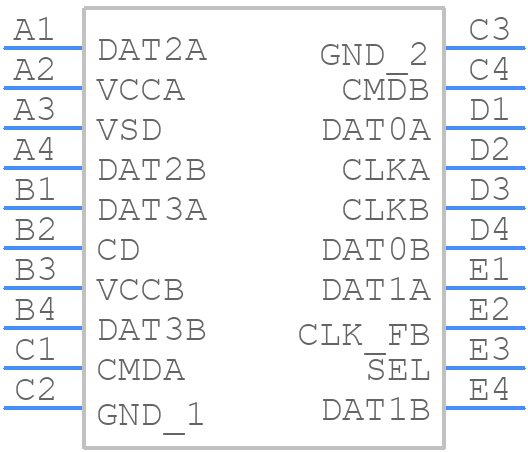

NVT4857UKAZ - NXP - PCB symbol
click to zoom
PCB Footprints
NVT4857UKAZ - NXP PCB footprint - BGA - BGA - WLCSP20
click to zoom
3D Models
NVT4857UKAZ - NXP - 3D model - BGA - WLCSP20
click to zoom

NVT4857UKAZ Details

  • Manufacturer Part Number:

    NVT4857UKAZ

  • Brand Name:

    NXP Semiconductor

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Package Description:

    WLCSP-20

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    5

  • Delay-Max:

    5.5 ns

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    VOLTAGE LEVEL TRANSLATOR

  • JESD-30 Code:

    R-XBGA-B20

  • JESD-609 Code:

    e2

  • Length:

    2.1 mm

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    1

  • Number of Functions:

    4

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Latch or Register:

    NONE

  • Output Polarity:

    TRUE

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA20,4X5,16

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.53 mm

  • Supply Current-Max:

    0.1 mA

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    2.9 V

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Silver/Copper/Nickel (Sn/Ag/Cu/Ni)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.7 mm

NVT4857UKAZ Frequently Asked Questions (FAQs)

  • A good PCB layout for the NVT4857UKAZ involves keeping the input and output traces short and symmetrical, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure EMC with the NVT4857UKAZ, use a shielded cable, keep the cable length as short as possible, and use a common-mode choke or ferrite bead to reduce electromagnetic radiation. Additionally, follow good PCB design practices, such as using a solid ground plane and minimizing loop areas.
  • The maximum cable length supported by the NVT4857UKAZ depends on the specific application and the type of cable used. As a general guideline, the maximum cable length is around 100 meters for a Category 5e cable. However, this can be extended up to 200 meters using a Category 6A cable or a fiber optic cable.
  • To troubleshoot issues with the NVT4857UKAZ, start by checking the power supply voltage and ensuring that it is within the recommended range. Then, check the input and output signals using an oscilloscope to identify any signal integrity issues. Also, verify that the device is properly configured and that the PCB layout is correct.
  • Yes, the NVT4857UKAZ can be used in a redundant or fault-tolerant system. The device has a built-in redundant mode that allows it to switch to a backup channel in case of a failure. Additionally, the device can be used in a dual-redundant configuration to ensure high availability and reliability.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NVT4857UKAZ Overview

Use the download button to access the NVT4857UKAZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NVT48, or try a keyword search, such as Level Translators

About NXP

NXP Semiconductors is a leading manufacturer of semiconductor devices with a wide range of semiconductor solutions, including microcontrollers, sensors, connectivity solutions, power management ICs, and security solutions. These products are used in a variety of applications such as automotive, industrial automation, smart homes, mobile devices, and more. NXP Semiconductors is one of the world’s largest semiconductor companies and is headquartered in Eindhoven, the Netherlands.
