NVT4858HKZ - NXP

Description: Translation - Voltage Levels SD 3.0-SDR104 compliant integrated auto-direction control memory card with EMI filter and ESD protection without LDO

Download NVT4858HKZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

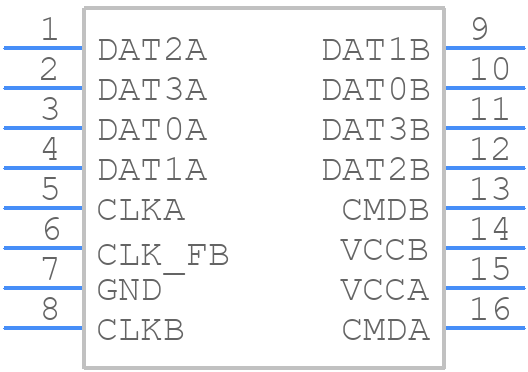

NVT4858HKZ - NXP - PCB symbol
click to zoom
PCB Footprints
NVT4858HKZ - NXP PCB footprint - Other - Other - NVT4858HKZ-2
click to zoom
3D Models
NVT4858HKZ - NXP - 3D model - Other - NVT4858HKZ-2
click to zoom

NVT4858HKZ Details

  • Manufacturer Part Number:

    NVT4858HKZ

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    XQFN-16

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    5

  • Additional Feature:

    IT SUPPORT SD/SIM CARD SUPPLY VTG WITH (1.62 TO 3.6)V

  • Delay-Max:

    5 ns

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    VOLTAGE LEVEL TRANSLATOR

  • JESD-30 Code:

    R-XQCC-N16

  • Length:

    2.6 mm

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    1

  • Number of Functions:

    4

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    PUSH-PULL

  • Output Latch or Register:

    LATCH

  • Output Polarity:

    TRUE

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    VQCCN

  • Package Equivalence Code:

    LCC16,.07X.1,16

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.5 mm

  • Supply Current-Max:

    0.015 mA

  • Supply Voltage-Max:

    1.98 V

  • Supply Voltage-Min:

    1.08 V

  • Supply Voltage-Nom:

    1.2 V

  • Supply Voltage1-Max:

    3.6 V

  • Supply Voltage1-Min:

    1.62 V

  • Supply Voltage1-Nom:

    2 V

  • Surface Mount:

    YES

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.8 mm

NVT4858HKZ Frequently Asked Questions (FAQs)

  • A good PCB layout for the NVT4858HKZ involves keeping the input and output traces short and symmetrical, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated ground plane is recommended.
  • To ensure EMC, use a shielded cable, keep the cable length short, and use a common-mode choke or ferrite bead to reduce emissions. Also, ensure the PCB layout is optimized for EMC, and use a metal enclosure to shield the device.
  • The maximum cable length supported by the NVT4858HKZ depends on the data rate and cable characteristics. As a general guideline, the maximum cable length is 100 meters at 100 Mbps, 50 meters at 1 Gbps, and 20 meters at 2.5 Gbps.
  • To troubleshoot issues with the NVT4858HKZ, check the power supply voltage, ensure proper termination, and verify the signal integrity. Use an oscilloscope to check the signal waveform and frequency. Also, check for any damage to the device or PCB.
  • Yes, the NVT4858HKZ can be used in a redundant or fault-tolerant system. The device has built-in features such as redundant transmission and reception, and can be used in a dual-redundant configuration to ensure high availability.
