NVTFS4C10NWFTAG - onsemi

Description: Low RDS(on); Optimized Gate Charge; Low Capacitance; AEC−Q101 Qualified and PPAP Capable; NVTFS4C10NWF − Wettable Flanks Product; RoHS Compliant

Download NVTFS4C10NWFTAG Model
Schematic

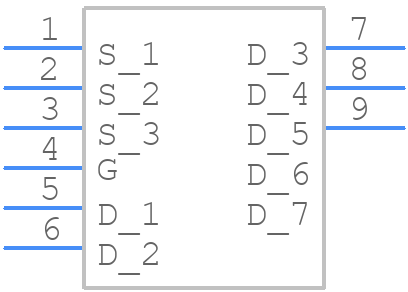

symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NVTFS4C10NWFTAG - onsemi PCB footprint - Other - Other - WDFN8 3.3x3.3, 0.65P CASE 511AB ISSUED
click to zoom
3D Models
NVTFS4C10NWFTAG - onsemi  - 3D model - Other - WDFN8 3.3x3.3, 0.65P CASE 511AB ISSUED
click to zoom

NVTFS4C10NWFTAG Details

  • Manufacturer Part Number:

    NVTFS4C10NWFTAG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    WDFNW8 3.3x3.3, 0.65P (Full−Cut ?8FL WF)

  • Package Description:

    WDFNW-8

  • Manufacturer Package Code:

    515AN

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • Manufacturer:

    onsemi

  • YTEOL:

    5

  • Avalanche Energy Rating (Eas):

    26 mJ

  • Case Connection:

    DRAIN

  • Configuration:

    SINGLE

  • DS Breakdown Voltage-Min:

    30 V

  • Drain Current-Max (ID):

    47 A

  • Drain-source On Resistance-Max:

    0.0074 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • Feedback Cap-Max (Crss):

    163 pF

  • JESD-30 Code:

    S-PDSO-F8

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    1

  • Number of Terminals:

    8

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    175 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    28 W

  • Pulsed Drain Current-Max (IDM):

    196 A

  • Reference Standard:

    AEC-Q101

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    FLAT

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON
