NVTFWS1D3N04XMTAG - onsemi

Description: Single N-Channel Power MOSFET 40 V, 195A, 1.3 mΩ

Download NVTFWS1D3N04XMTAG Model

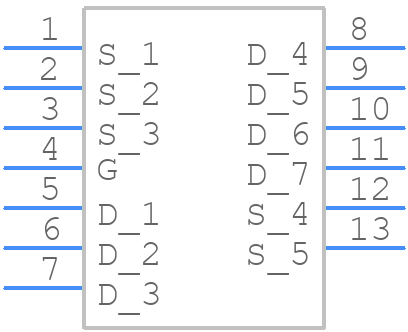

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NVTFWS1D3N04XMTAG - onsemi PCB footprint - Other - Other - WDFNW8 3.3x3.3, 0.65P (Full−Cut 8FL Fused WF) CASE 515AP ISSUE O
click to zoom
3D Models
NVTFWS1D3N04XMTAG - onsemi  - 3D model - Other - WDFNW8 3.3x3.3, 0.65P (Full−Cut 8FL Fused WF) CASE 515AP ISSUE O
click to zoom

NVTFWS1D3N04XMTAG Details

  • Manufacturer Part Number:

    NVTFWS1D3N04XMTAG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    WDFNW8 3.30x3.30x0.75, 0.65P

  • Manufacturer Package Code:

    515AP

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.29.00.95

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    6

  • Avalanche Energy Rating (Eas):

    281 mJ

  • Case Connection:

    DRAIN

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    40 V

  • Drain Current-Max (ID):

    178 A

  • Drain-source On Resistance-Max:

    0.00143 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • Feedback Cap-Max (Crss):

    22 pF

  • JESD-30 Code:

    R-PDSO-N8

  • Number of Elements:

    1

  • Number of Terminals:

    8

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    175 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation Ambient-Max:

    83 W

  • Power Dissipation-Max (Abs):

    83 W

  • Pulsed Drain Current-Max (IDM):

    895 A

  • Reference Standard:

    AEC-Q101

  • Surface Mount:

    YES

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    DUAL

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NVTFWS1D3N04XMTAG Overview

Use the download button to access the NVTFWS1D3N04XMTAG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NVTFW, or try a keyword search, such as Power Field-Effect Transistors
