Part Image

NX30P6093UKAZ - NXP

Description: High-voltage I2C controlled overvoltage protection load switch, 8A, 8.95mOhm, 2.8V ~ 20V, -40°C ~ 85°C

Download NX30P6093UKAZ Model

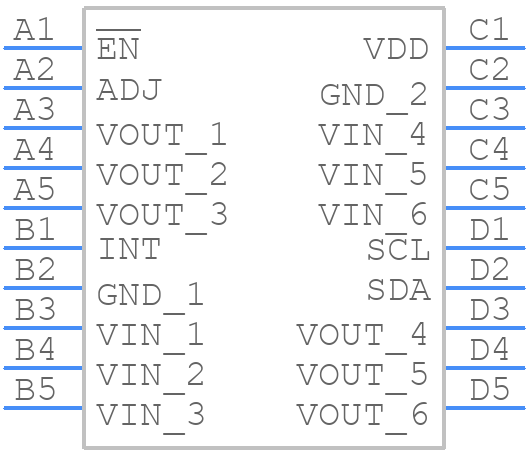

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NX30P6093UKAZ - NXP PCB footprint - BGA - BGA - SOT1397-6 (WLCSP20)
click to zoom
3D Models
NX30P6093UKAZ - NXP  - 3D model - BGA - SOT1397-6 (WLCSP20)
click to zoom

NX30P6093UKAZ Details

  • Manufacturer Part Number:

    NX30P6093UKAZ

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    WLCSP-20

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2018-09-18

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    5

  • Built-in Protections:

    TRANSIENT; OVER VOLTAGE; THERMAL; UNDER VOLTAGE

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    R-PBGA-B20

  • Length:

    2.16 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current Flow Direction:

    SOURCE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.565 mm

  • Supply Voltage-Max:

    20 V

  • Supply Voltage-Min:

    2.8 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.7 mm

NX30P6093UKAZ Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the NX30P6093UKAZ is 1.71V to 3.6V.
  • To ensure stability, a 1uF capacitor should be connected between the VDD pin and the GND pin, and a 10nF capacitor should be connected between the VREG pin and the GND pin.
  • The maximum current that can be drawn from the internal voltage regulator is 50mA.
  • To configure the NX30P6093UKAZ for low-power mode, set the PWRDWN pin to a logic low level. This will reduce the power consumption of the device.
  • The WAKEUP pin is used to wake up the device from low-power mode. A logic high level on this pin will wake up the device.
