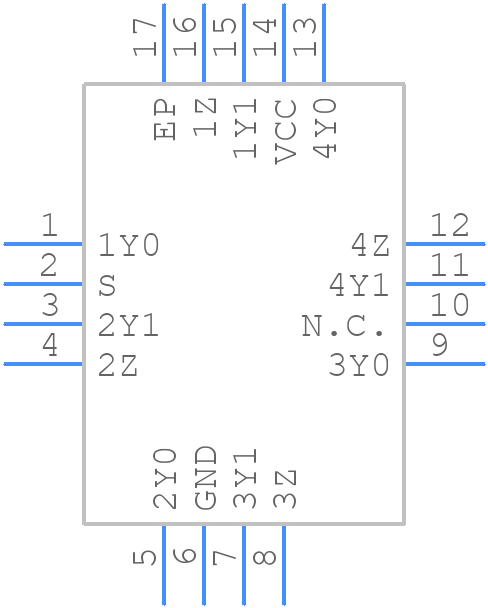

NX3DV2567HR,115 - NXP

NX3DV2567HR,115 Details

• Manufacturer Part Number:

  NX3DV2567HR,115

• Brand Name:

  NXP Semiconductor

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  QFN

• Package Description:

  HXQFN-16

• Pin Count:

  16

• Manufacturer Package Code:

  SOT1039-2

• Country Of Origin:

  Thailand

• HTS Code:

  8542.39.00.01

• Manufacturer:

  NXP Semiconductors

• YTEOL:

  5

• Additional Feature:

  DATA PATH SWITCH: RON RESISTANCE IS 11 OHMS;ON-STATE RESISTANCE MATCH-0.2OHM

• Analog IC - Other Type:

  4PDT

• JESD-30 Code:

  S-PBCC-B16

• Length:

  3 mm

• Moisture Sensitivity Level:

  1

• Normal Position:

  NC

• Number of Channels:

  4

• Number of Functions:

  1

• Number of Terminals:

  16

• Off-state Isolation-Nom:

  60 dB

• On-state Resistance Match-Nom:

  0.1 Ω

• On-state Resistance-Max (Ron):

  0.85 Ω

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• Output:

  SEPARATE OUTPUT

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HVBCC

• Package Equivalence Code:

  LCC16,.12SQ,20

• Package Shape:

  SQUARE

• Package Style:

  CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  0.5 mm

• Supply Voltage-Max (Vsup):

  4.3 V

• Supply Voltage-Min (Vsup):

  1.4 V

• Supply Voltage-Nom (Vsup):

  1.5 V

• Surface Mount:

  YES

• Switch-off Time-Max:

  90 ns

• Switch-on Time-Max:

  120 ns

• Switching:

  BREAK-BEFORE-MAKE

• Technology:

  CMOS

• Temperature Grade:

  AUTOMOTIVE

• Terminal Finish:

  Nickel/Palladium/Gold (Ni/Pd/Au)

• Terminal Form:

  BUTT

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  BOTTOM

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  3 mm
