NX3L4053PW,118 - NXP

Description: Analog Switch ICs ANLG SWT SPDT 3.3V

Download NX3L4053PW,118 Model

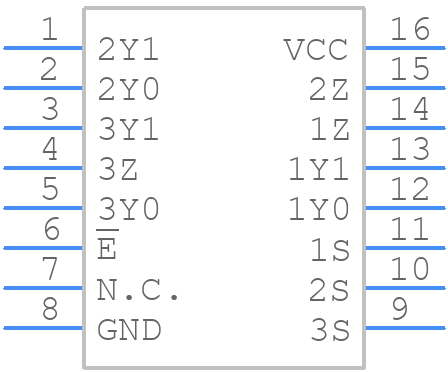

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NX3L4053PW,118 - NXP PCB footprint - Small Outline Packages - Small Outline Packages - SOT403-1 (TSSOP16)
click to zoom
3D Models
NX3L4053PW,118 - NXP  - 3D model - Small Outline Packages - SOT403-1 (TSSOP16)
click to zoom

NX3L4053PW,118 Details

  • Manufacturer Part Number:

    NX3L4053PW,118

  • Brand Name:

    NXP Semiconductor

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Pin Count:

    16

  • Manufacturer Package Code:

    SOT403-1

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    8

  • Analog IC - Other Type:

    SPDT

  • JESD-30 Code:

    R-PDSO-G16

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    3

  • Number of Terminals:

    16

  • On-state Resistance-Max (Ron):

    4.2 Ω

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    YES

  • Switch-on Time-Max:

    90 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

NX3L4053PW,118 Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the NX3L4053PW,118 is 1.65 V to 5.5 V.
  • To ensure the analog switch is properly turned on and off, apply a logic high signal (VCC) to the EN pin to turn the switch on, and a logic low signal (GND) to turn it off.
  • The maximum current rating for the NX3L4053PW,118 is 30 mA per channel.
  • To minimize power consumption when the switch is in the off-state, ensure the EN pin is at a logic low level (GND) and the input signals are at a valid logic level (VCC or GND).
  • The typical on-resistance (Rds(on)) of the NX3L4053PW,118 is 5 ohms.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NX3L4053PW,118 Overview

Use the download button to access the NX3L4053PW,118 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NX3L4, or try a keyword search, such as Multiplexers or Switches

About NXP

NXP Semiconductors is a leading manufacturer of semiconductor devices with a wide range of semiconductor solutions, including microcontrollers, sensors, connectivity solutions, power management ICs, and security solutions. These products are used in a variety of applications such as automotive, industrial automation, smart homes, mobile devices, and more. NXP Semiconductors is one of the world’s largest semiconductor companies and is headquartered in Eindhoven, the Netherlands.
