NXH004P120M3F2PTHG - onsemi

Description: Excellent FOM [ = Rdson * Eoss ]; 15V to 18V Gate Drive; 4 mohm / 1200 V M3S SiC MOSFET Half−Bridge; These Devices are Pb−Free, Halide Free and are RoHS Compliant

Download NXH004P120M3F2PTHG Model

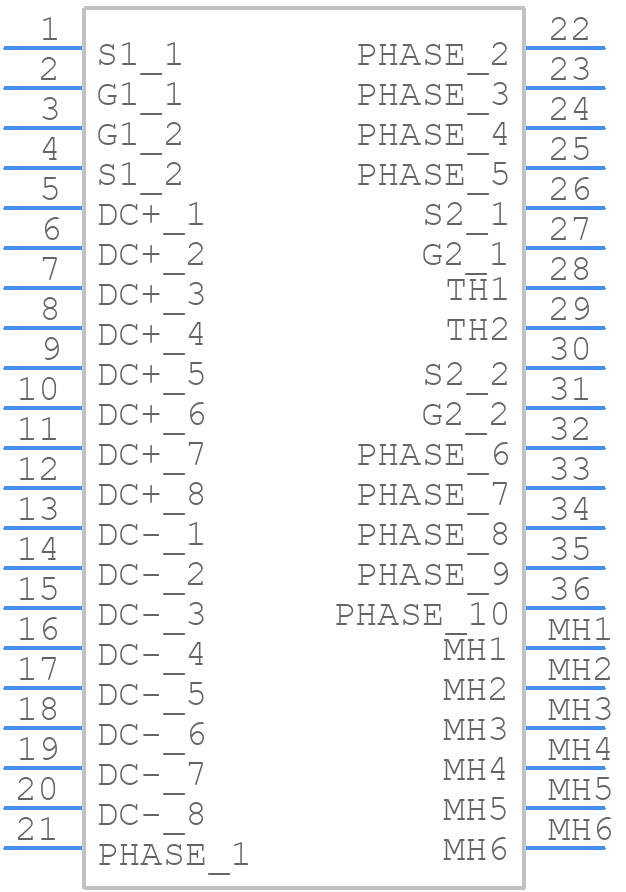

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download

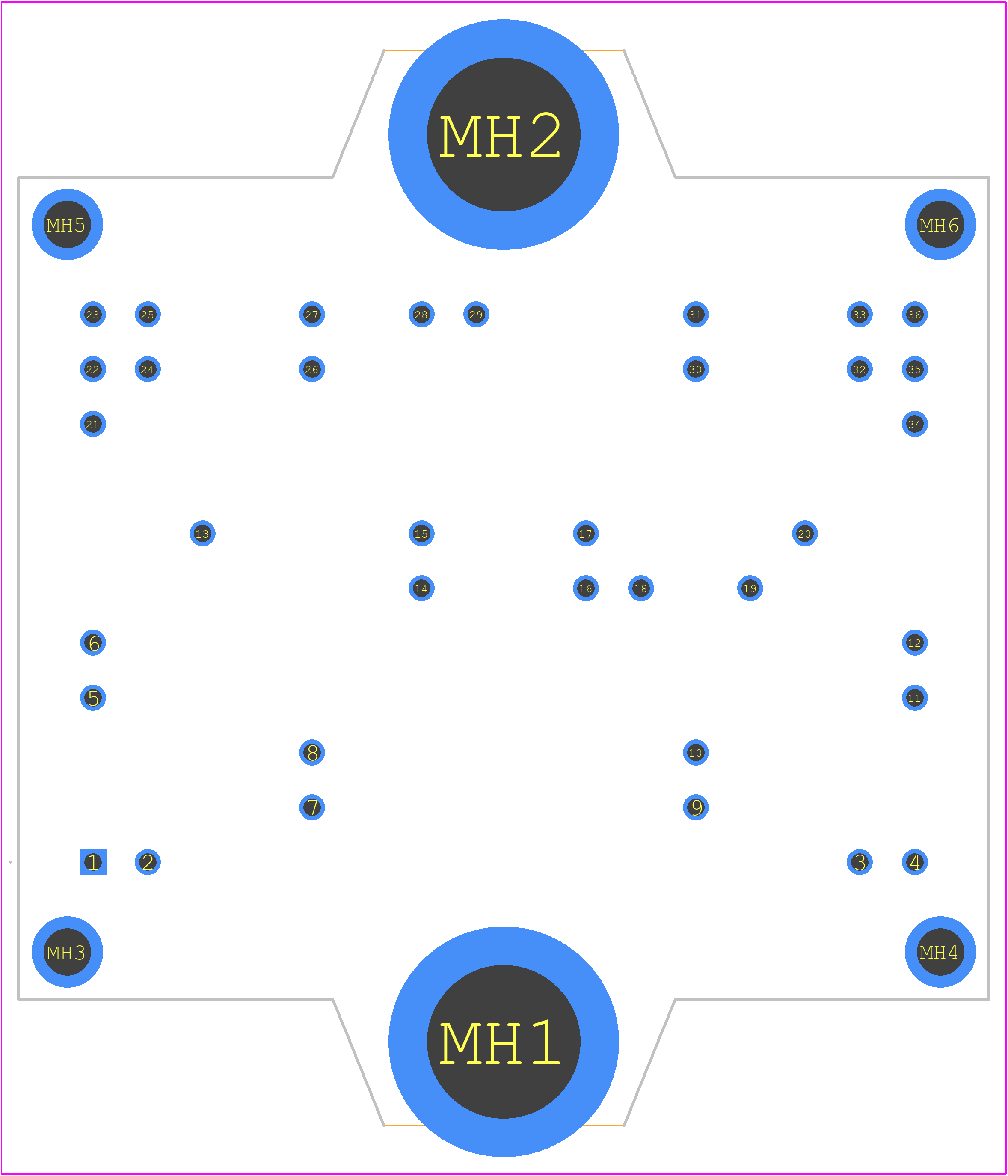

PCB Footprints
NXH004P120M3F2PTHG - onsemi PCB footprint - Other - Other - PIM36 56.7x42.5 (PRESS FIT)CASE 180BY
click to zoom
3D Models
NXH004P120M3F2PTHG - onsemi  - 3D model - Other - PIM36 56.7x42.5 (PRESS FIT)CASE 180BY
click to zoom

NXH004P120M3F2PTHG Details

  • Manufacturer Part Number:

    NXH004P120M3F2PTHG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    PIM36 56.70x42.50x12.00

  • Manufacturer Package Code:

    180BY

  • ECCN Code:

    EAR99

  • Manufacturer:

    onsemi

  • YTEOL:

    7

  • Case Connection:

    ISOLATED

  • Configuration:

    SERIES CONNECTED, CENTER TAP, 2 ELEMENTS WITH BUILT-IN DIODE AND THERMISTOR

  • DS Breakdown Voltage-Min:

    1200 V

  • Drain Current-Max (ID):

    284 A

  • Drain-source On Resistance-Max:

    0.0055 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • Feedback Cap-Max (Crss):

    72 pF

  • JESD-30 Code:

    R-XUFM-X36

  • Number of Elements:

    2

  • Number of Terminals:

    36

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    785 W

  • Pulsed Drain Current-Max (IDM):

    568 A

  • Surface Mount:

    NO

  • Terminal Form:

    UNSPECIFIED

  • Terminal Position:

    UPPER

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON CARBIDE
