The recommended PCB footprint for NXH020U90MNF2PTG is a 5x5mm QFN package with a 0.5mm pitch. It's essential to follow the recommended land pattern to ensure proper thermal and electrical performance.
To optimize thermal performance, ensure good thermal conduction by using a thermal pad on the PCB, and consider using a heat sink or thermal interface material (TIM) if necessary. Also, follow the recommended PCB layout and thermal design guidelines provided by onsemi.
The maximum operating temperature range for NXH020U90MNF2PTG is -40°C to 150°C. However, it's essential to note that the device's performance and reliability may degrade at extreme temperatures, so it's recommended to operate within the specified temperature range for optimal performance.
To handle ESD protection for NXH020U90MNF2PTG, follow proper handling and storage procedures, and consider using ESD protection devices such as TVS diodes or ESD arrays on the PCB. Additionally, ensure that the PCB design and layout minimize the risk of ESD damage.
The recommended input capacitor value for NXH020U90MNF2PTG is typically in the range of 1-10uF, depending on the specific application and operating conditions. It's essential to choose a capacitor with a suitable voltage rating, ESR, and temperature range to ensure proper operation and stability.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NXH020U90MNF2PTG Overview

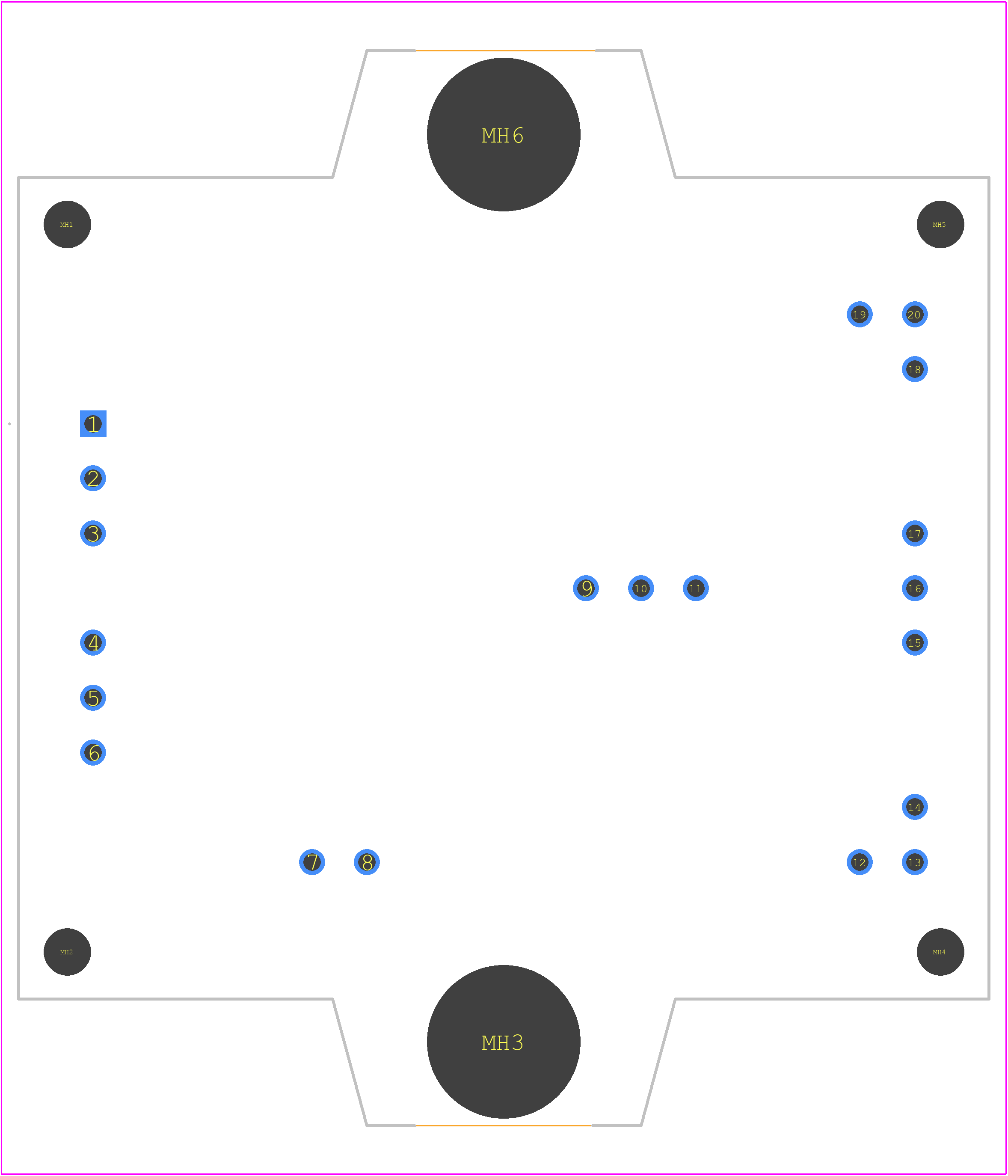

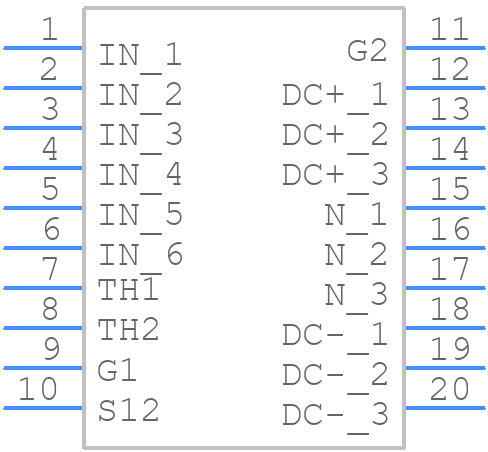

Use the download button to access the NXH020U90MNF2PTG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NXH02,
or try a keyword search, such as Power Field-Effect Transistors
