NXH022S120M3F1PTG - onsemi

Description: Silicon Carbide (SiC) Module, 22 mohm SiC M3S MOSFET, 1200 V, 6-PACK Full Bridge Topology, F1 Package

Download NXH022S120M3F1PTG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

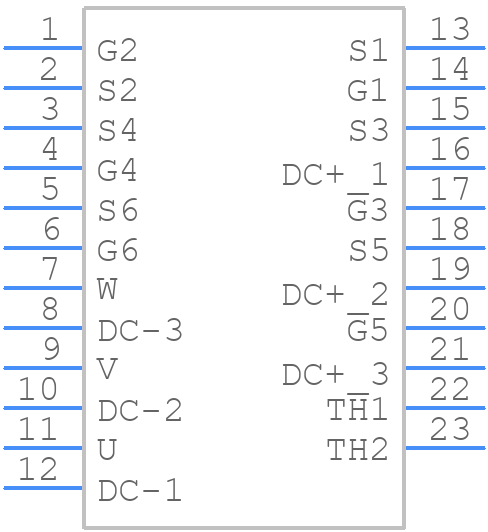

NXH022S120M3F1PTG - onsemi - PCB symbol
click to zoom
PCB Footprints

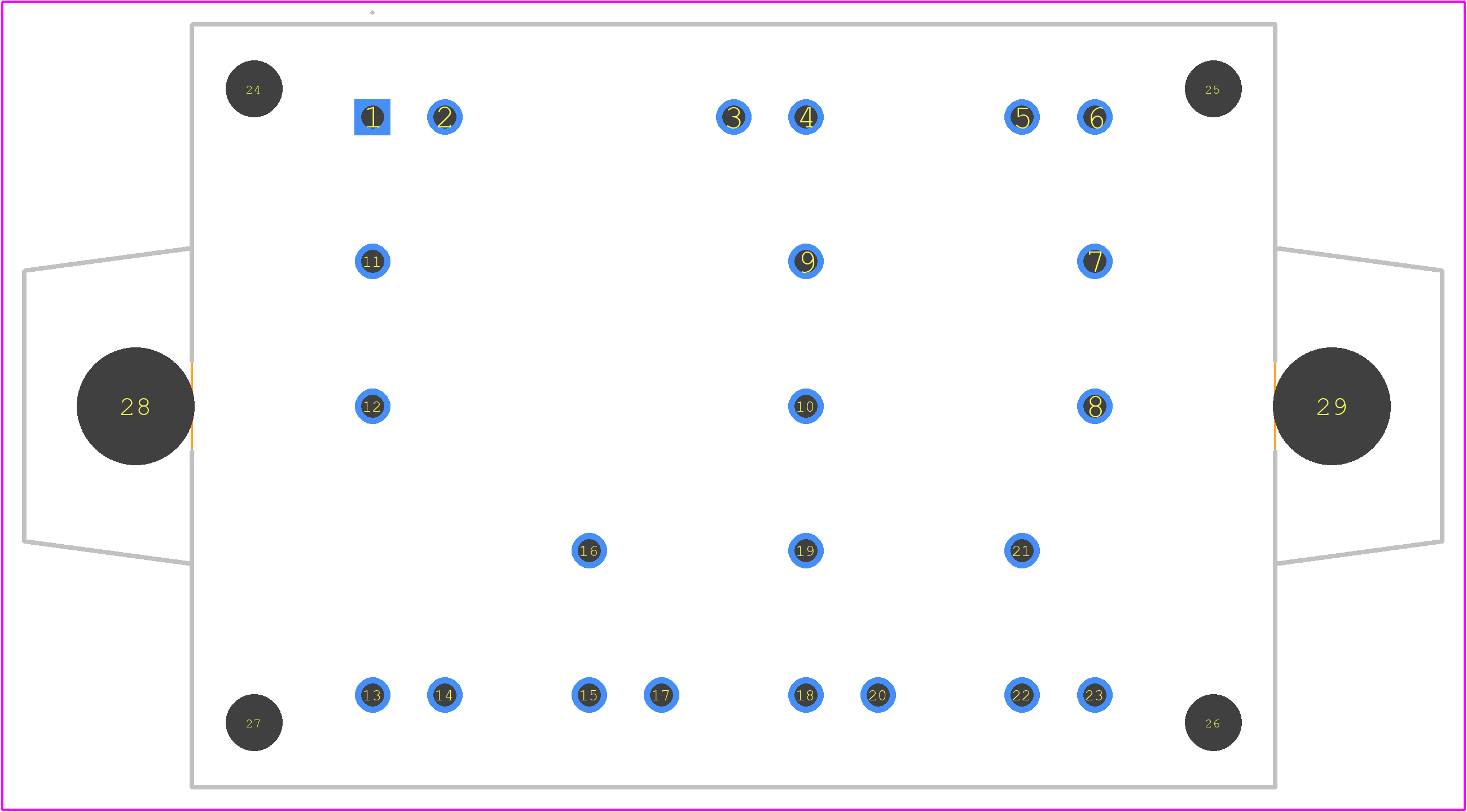

NXH022S120M3F1PTG - onsemi PCB footprint - Other - Other - PIM23 33.80x42.50x12.00 CASE 180DA ISSUE O_2025-1.9
click to zoom
3D Models
NXH022S120M3F1PTG - onsemi - 3D model - Other - PIM23 33.80x42.50x12.00 CASE 180DA ISSUE O_2025-1.9
click to zoom

NXH022S120M3F1PTG Details

  • Manufacturer Part Number:

    NXH022S120M3F1PTG

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MODULE-23

  • ECCN Code:

    EAR99

  • Manufacturer:

    onsemi

  • YTEOL:

    5

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NXH022S120M3F1PTG Overview

Use the download button to access the NXH022S120M3F1PTG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NXH02, or try a keyword search, such as Power Field-Effect Transistors
