NXJ2S0505MC-R13 - Murata Electronics

Description: Converter: DC/DC; 2W; Uin: 4.5÷5.5VDC; Uout: 5VDC; Iout: 400mA; SMT

Download NXJ2S0505MC-R13 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

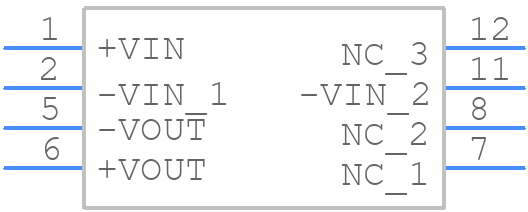

NXJ2S0505MC-R13 - Murata Electronics - PCB symbol
click to zoom
PCB Footprints
NXJ2S0505MC-R13 - Murata Electronics PCB footprint - Other - Other - NXJ2S0505MC-R13-1
click to zoom
3D Models
NXJ2S0505MC-R13 - Murata Electronics - 3D model - Other - NXJ2S0505MC-R13-1
click to zoom

NXJ2S0505MC-R13 Details

  • Manufacturer Part Number:

    NXJ2S0505MC-R13

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    Murata Manufacturing Co Ltd

  • YTEOL:

    9

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Approvals:

    UL, ANSI, AAMI

  • Efficiency (Main Output):

    72.5%

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    4.5 V

  • Input Voltage-Nom:

    5 V

  • JESD-30 Code:

    R-XDMA-N8

  • JESD-609 Code:

    e4

  • Length:

    15.49 mm

  • Line Regulation-Max:

    1.2%

  • Load Regulation-Max:

    10%

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.4 A

  • Output Voltage-Nom:

    5 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Peak Reflow Temperature (Cel):

    260

  • Protections:

    SHORT CIRCUIT

  • Ripple Voltage (Main Out):

    0.03888 Vrms

  • Screening Level:

    ES 60601-1, Two MOPP

  • Surface Mount:

    YES

  • Technology:

    HYBRID

  • Terminal Finish:

    Gold (Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Total Power Output-Max:

    2 W

  • Trim/Adjustable Output:

    NO

  • Width:

    11.43 mm

NXJ2S0505MC-R13 Frequently Asked Questions (FAQs)

  • The recommended land pattern for NXJ2S0505MC-R13 is a rectangular pad with a size of 1.2mm x 0.8mm, with a solder mask opening of 0.8mm x 0.5mm. It's recommended to follow the Murata's recommended land pattern guidelines for optimal performance and reliability.
  • The NXJ2S0505MC-R13 is rated for operation up to 125°C, but it's not recommended to use it in environments above 105°C for extended periods. Prolonged exposure to high temperatures can affect the component's reliability and lifespan.
  • Handle the NXJ2S0505MC-R13 by the edges or the body, avoiding touching the pins or the component's surface. Use an anti-static wrist strap or mat to prevent electrostatic discharge (ESD) damage. Avoid bending or flexing the component during assembly, and ensure that the component is properly seated on the PCB.
  • The maximum allowable voltage for NXJ2S0505MC-R13 is 50V. Exceeding this voltage can cause damage to the component or affect its performance.
  • The NXJ2S0505MC-R13 is not hermetically sealed, so it's not recommended to use it in humid environments or environments with high moisture levels. Moisture can affect the component's performance and reliability.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NXJ2S0505MC-R13 Overview

Use the download button to access the NXJ2S0505MC-R13 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NXJ2S, or try a keyword search, such as Power Supply Modules

About Murata Electronics

Murata Manufacturing Co., Ltd. is a Japanese multinational company that specializes in the design, manufacturing, and sale of electronic components and solutions. Murata offers a wide range of electronic components and modules that are used in various industries and applications. Some of their key product categories include: capacitors, inductors, resistors, sensors, rf components and modules, and power devices.
