NXJ2S1215MC - Murata Electronics

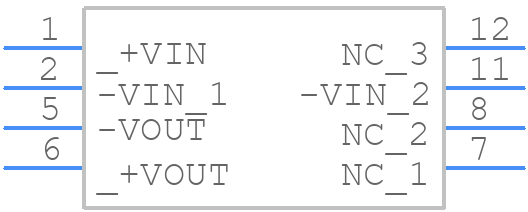

NXJ2S1215MC Details

• Manufacturer Part Number:

  NXJ2S1215MC

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  SMD-12/8

• ECCN Code:

  EAR99

• Date Of Intro:

  2020-06-05

• Manufacturer:

  Murata Manufacturing Co Ltd

• YTEOL:

  7

• Analog IC - Other Type:

  DC-DC REGULATED POWER SUPPLY MODULE

• Approvals:

  AAMI, ANSI, C-UL-US, ES, UL

• Efficiency (Main Output):

  77.5%

• Input Voltage-Max:

  13.2 V

• Input Voltage-Min:

  10.8 V

• Input Voltage-Nom:

  12 V

• JESD-30 Code:

  R-XDMA-N8

• Length:

  15.49 mm

• Line Regulation-Max:

  1.2%

• Load Regulation-Max:

  10%

• Moisture Sensitivity Level:

  2

• Number of Functions:

  1

• Number of Outputs:

  1

• Number of Terminals:

  8

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Output Current-Max:

  0.133 A

• Output Voltage-Nom:

  15 V

• Package Body Material:

  UNSPECIFIED

• Package Code:

  DMA

• Package Equivalence Code:

  MODULE,8/12LEAD,.4

• Package Shape:

  RECTANGULAR

• Package Style:

  MICROELECTRONIC ASSEMBLY

• Peak Reflow Temperature (Cel):

  260

• Ripple Voltage (Main Out):

  0.0212 Vrms

• Screening Level:

  UL 62368-1, 1 MOPP, 2 MOOP

• Seated Height-Max:

  4.86 mm

• Surface Mount:

  YES

• Technology:

  HYBRID

• Terminal Finish:

  Gold (Au)

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  2.54 mm

• Terminal Position:

  DUAL

• Total Power Output-Max:

  2 W

• Trim/Adjustable Output:

  NO

• Warm-up Time:

  0.0012 s

• Width:

  11.43 mm
