NXJ2S2405MC-R13 - Murata Electronics

Description: DC/DC SM 2W 24V-5V Single 5.2kV

Download NXJ2S2405MC-R13 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

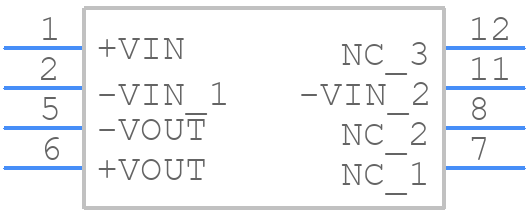

Symbol
NXJ2S2405MC-R13 - Murata Electronics - PCB symbol
click to zoom
PCB Footprints
NXJ2S2405MC-R13 - Murata Electronics PCB footprint - Other - Other - NXJ2S2405MC-R13-1
click to zoom
3D Models
NXJ2S2405MC-R13 - Murata Electronics - 3D model - Other - NXJ2S2405MC-R13-1
click to zoom

NXJ2S2405MC-R13 Details

  • Manufacturer Part Number:

    NXJ2S2405MC-R13

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    Murata Manufacturing Co Ltd

  • YTEOL:

    9

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Approvals:

    UL, ANSI, AAMI

  • Efficiency (Main Output):

    76.5%

  • Input Voltage-Max:

    26.4 V

  • Input Voltage-Min:

    21.6 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    R-XDMA-N8

  • JESD-609 Code:

    e4

  • Length:

    16 mm

  • Line Regulation-Max:

    1.1%

  • Load Regulation-Max:

    10%

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.4 A

  • Output Voltage-Nom:

    5 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Peak Reflow Temperature (Cel):

    260

  • Protections:

    SHORT CIRCUIT

  • Ripple Voltage (Main Out):

    0.06009 Vrms

  • Screening Level:

    ES 60601-1, Two MOPP

  • Surface Mount:

    YES

  • Technology:

    HYBRID

  • Terminal Finish:

    Gold (Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Total Power Output-Max:

    2 W

  • Trim/Adjustable Output:

    NO

  • Width:

    14.48 mm

NXJ2S2405MC-R13 Frequently Asked Questions (FAQs)

  • Murata recommends a land pattern with a pad size of 1.3mm x 0.8mm and a spacing of 0.5mm between pads. It's essential to follow the recommended land pattern to ensure reliable soldering and prevent thermal issues.
  • While the NXJ2S2405MC-R13 is rated for operation up to 125°C, it's essential to consider the derating curve and thermal management in high-temperature applications. Ensure that the component is properly cooled, and the operating temperature is within the specified range to prevent degradation or failure.
  • Handle the component by the body, avoiding touching the leads or electrical contacts. Use a vacuum pickup or tweezers to prevent mechanical stress. During rework, use a low-temperature soldering iron (below 350°C) and a solder with a low melting point to prevent damage to the component or PCB.
  • Store the NXJ2S2405MC-R13 in a dry, cool place (temperature range: 5°C to 30°C, humidity: 60% or less). Avoid exposing the component to direct sunlight, moisture, or extreme temperatures, which can affect its performance and reliability.
  • While the NXJ2S2405MC-R13 is designed to operate in a variety of environments, it's essential to consider the moisture sensitivity level (MSL) rating of 3. This means the component can withstand some humidity, but it's crucial to follow proper handling and storage procedures to prevent moisture-related issues.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NXJ2S2405MC-R13 Overview

Use the download button to access the NXJ2S2405MC-R13 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NXJ2S, or try a keyword search, such as Power Supply Modules

About Murata Electronics

Murata Manufacturing Co., Ltd. is a Japanese multinational company that specializes in the design, manufacturing, and sale of electronic components and solutions. Murata offers a wide range of electronic components and modules that are used in various industries and applications. Some of their key product categories include: capacitors, inductors, resistors, sensors, rf components and modules, and power devices.
