NXS0102GTX - Nexperia

Description: Dual supply translating transceiver; open drain; auto direction sensing

Download NXS0102GTX Model

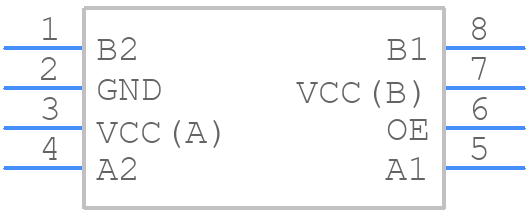

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NXS0102GTX - Nexperia PCB footprint - Other - Other - NXS0102GTX-4
click to zoom
3D Models
NXS0102GTX - Nexperia  - 3D model - Other - NXS0102GTX-4
click to zoom

NXS0102GTX Details

  • Manufacturer Part Number:

    NXS0102GTX

  • Brand Name:

    Nexperia

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SON

  • Package Description:

    XSON-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    SOT833-1

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Nexperia

  • YTEOL:

    7

  • Delay-Max:

    7.3 ns

  • Interface IC Type:

    VOLTAGE LEVEL TRANSLATOR

  • JESD-30 Code:

    R-PDSO-N8

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    OPEN-DRAIN

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    XSON

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, EXTREMELY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Supply Current-Max:

    0.03 mA

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    1.65 V

  • Supply Voltage-Nom:

    1.8 V

  • Supply Voltage1-Max:

    5.5 V

  • Supply Voltage1-Min:

    2.3 V

  • Supply Voltage1-Nom:

    2.5 V

  • Surface Mount:

    YES

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

NXS0102GTX Frequently Asked Questions (FAQs)

  • Nexperia recommends a thermal pad on the bottom of the package, connected to a large copper area on the PCB to dissipate heat efficiently. A minimum of 2oz copper thickness is recommended.
  • Ensure the device is operated within the recommended junction temperature (Tj) range of -40°C to 150°C. Use a thermal design that keeps the junction temperature below 125°C for reliable operation.
  • The maximum allowed voltage on the input pins is 5.5V, which is the absolute maximum rating. However, for reliable operation, it's recommended to keep the input voltage below 5V.
  • Yes, the NXS0102GTX can be used as a level shifter. It can translate logic levels from 1.8V to 5V or vice versa, making it suitable for voltage translation applications.
  • The propagation delay of the NXS0102GTX is typically around 2.5ns, but it can vary depending on the input signal, output load, and operating conditions.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NXS0102GTX Overview

Use the download button to access the NXS0102GTX schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NXS01, or try a keyword search, such as Level Translators

About Nexperia

Nexperia is a leading global player in the semiconductor industry. Specializing in essential electronic components, Nexperia offers a diverse range of products including discrete components, MOSFETs, logic ICs, and analog ICs. These components are integral to a multitude of applications across automotive, industrial, consumer electronics, and computing sectors, where reliability, performance, and efficiency are paramount.
