NXVF6532M3TG01 - onsemi

Description: EliteSiC Power MOSFET Module 650 V, 32 m H-Bridge −55 to+175°C,31A

Download NXVF6532M3TG01 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

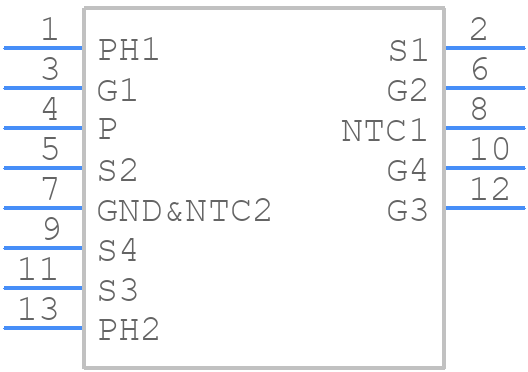

NXVF6532M3TG01 - onsemi - PCB symbol
click to zoom
PCB Footprints

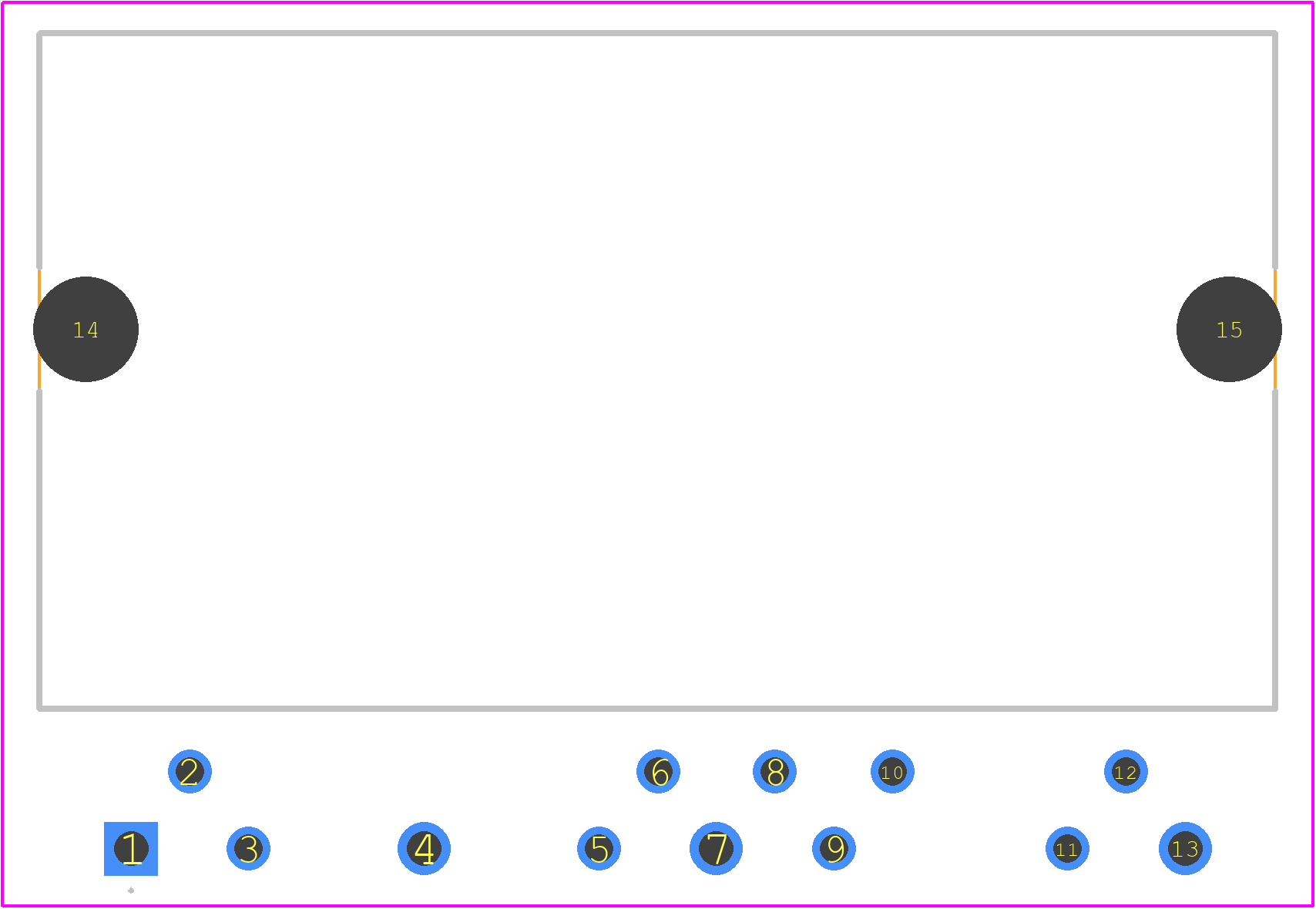

NXVF6532M3TG01 - onsemi PCB footprint - Other - Other - AUTOMOTIVE POWER MODULE16 40.10x21.90x4.50, 1.90P CASE 829AA ISSUE O_2026
click to zoom
3D Models
NXVF6532M3TG01 - onsemi - 3D model - Other - AUTOMOTIVE POWER MODULE16 40.10x21.90x4.50, 1.90P CASE 829AA ISSUE O_2026
click to zoom

NXVF6532M3TG01 Details

  • Manufacturer Part Number:

    NXVF6532M3TG01

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    onsemi

  • YTEOL:

    7

  • Interface IC Type:

    HALF BRIDGE BASED MOSFET DRIVER

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NXVF6532M3TG01 Overview

Use the download button to access the NXVF6532M3TG01 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NXVF6, or try a keyword search, such as MOSFET Drivers
