The operating temperature range is -40°C to +85°C, as specified in the datasheet. However, it's essential to note that the oscillator's frequency stability and accuracy may vary outside the recommended operating temperature range.
While the O-CS8-0PS17EWL-R-100.000MHZ is designed to be robust, it's still important to consider the vibration specifications. The oscillator can withstand vibrations up to 20G, but it's recommended to consult with Abracon Corporation or perform additional testing to ensure the oscillator meets your specific application requirements.
To ensure proper soldering, follow the recommended soldering profile and guidelines provided in the datasheet. It's essential to use a soldering iron with a temperature range of 250°C to 260°C and a soldering time of 3-5 seconds. Additionally, use a solder with a melting point of 217°C to 220°C.
For optimal performance, it's recommended to follow the PCB layout guidelines provided in the datasheet. Keep the oscillator away from noise sources, use a solid ground plane, and ensure the PCB material has a low dielectric constant. Additionally, use a 4-layer PCB with a dedicated ground plane to minimize noise and EMI.
Yes, the O-CS8-0PS17EWL-R-100.000MHZ is designed to minimize EMI. The oscillator's shielded package and internal filtering help reduce electromagnetic radiation. However, it's still important to follow proper PCB design and layout guidelines to minimize EMI in your overall design.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
O-CS8-0PS17EWL-R-100.000MHZ Overview

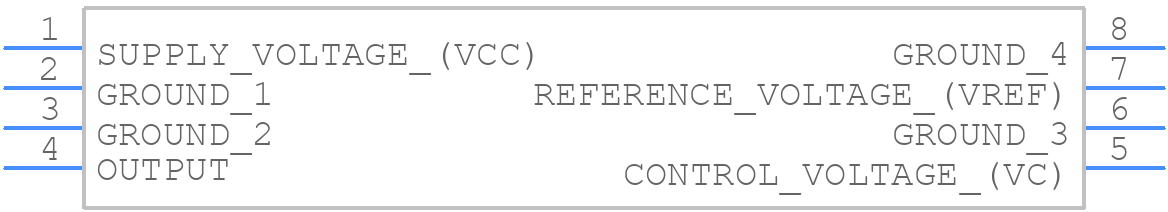

Use the download button to access the O-CS8-0PS17EWL-R-100.000MHZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like O-CS8,
or try a keyword search, such as OCVCXO
