The operating temperature range is -40°C to +85°C, as specified in the datasheet. However, it's essential to note that the oscillator's frequency stability and accuracy may vary outside the recommended operating temperature range.
While the O-CS8-0PS17EWP-R-100.000MHZ is designed to be robust, it's still important to consider the vibration specifications. Abracon recommends a maximum vibration of 10G peak acceleration, 10-2000Hz frequency range. Exceeding this may affect the oscillator's performance or reliability.
To ensure proper soldering, follow the recommended soldering profile: peak temperature 260°C, time above 217°C 10-15 seconds, and a maximum of 3 reflows. Additionally, use a solder with a melting point above 217°C and follow the manufacturer's recommended soldering techniques.
For optimal performance, Abracon recommends a PCB layout with a solid ground plane, minimal signal trace length, and a 50Ω transmission line impedance. Keep the oscillator away from noise sources and ensure proper decoupling capacitors are used.
The O-CS8-0PS17EWP-R-100.000MHZ is designed to meet EMI requirements, but it's still important to follow proper PCB design and layout guidelines to minimize EMI. Use shielding, grounding, and decoupling techniques to reduce EMI emissions.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
O-CS8-0PS17EWP-R-100.000MHZ Overview

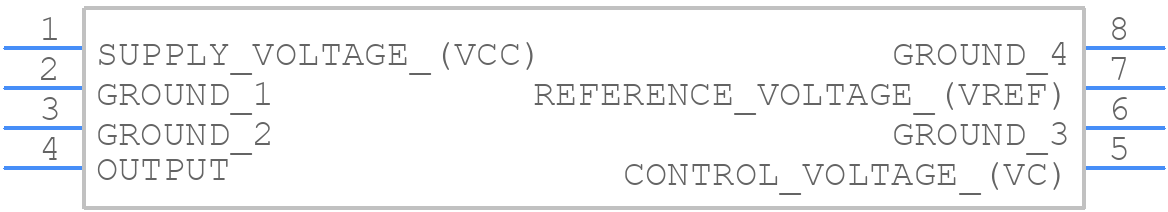

Use the download button to access the O-CS8-0PS17EWP-R-100.000MHZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like O-CS8,
or try a keyword search, such as OCVCXO
