PCB Footprints
- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for OCTI140500
- Part Number OCTI140500
- Manufacturer Radiall
- Pin Count 13
- Part Category Connector
- Package Category Other

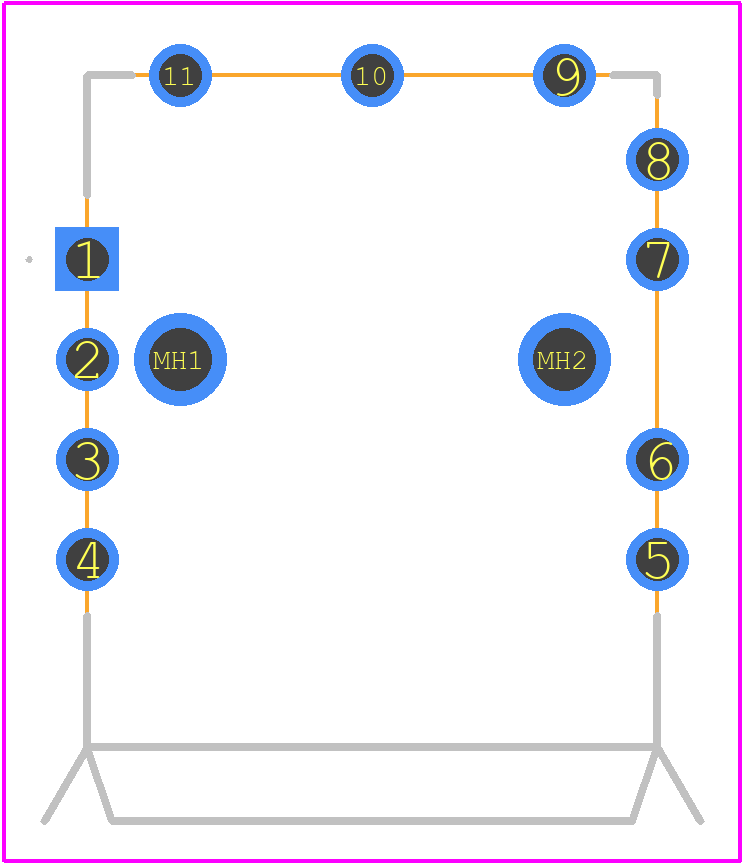

- Footprint Name Other - OCTI140500-1
- Released Date Apr 19, 2023
- Last Modified Date Apr 20, 2023 6:25 AM UTC
- Pinout / Pin List Click Here (Member Only)
OCTI140500 Details
-
Manufacturer Part Number:
OCTI140500
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Manufacturer:
Radiall
-
Approvals:
UL
-
Assembly Item Name:
CAGE ASSEMBLY
-
Connector Support Type:
CONNECTOR ACCESSORY
-
DIN Conformance:
NO
-
IEC Conformance:
NO
-
MIL Conformance:
NO
-
Material:
BRASS
OCTI140500 Frequently Asked Questions (FAQs)
-
The recommended torque value for the OCTI140500 connector is 0.8 Nm (7 in-lbs) for the coupling nut and 1.2 Nm (10 in-lbs) for the backshell.
-
Yes, the OCTI140500 is designed to withstand high-vibration environments and meets the requirements of MIL-DTL-38999, which includes vibration testing.
-
The operating temperature range of the OCTI140500 is -65°C to 200°C (-85°F to 392°F), making it suitable for use in extreme temperature environments.
-
Yes, the OCTI140500 is compatible with other Radiall connectors that meet the MIL-DTL-38999 standard, allowing for easy integration into existing systems.
-
The OCTI140500 has an IP67 rating, which means it is protected against dust and can withstand immersion in water up to 1 meter (3.3 feet) for up to 30 minutes.
Trust Checks
Community Provided
System Verified
Community Approved
OCTI140500 Overview
Use the download button to access the OCTI140500 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like OCTI1,
or try a keyword search, such as Assembly Items
