OD-3516 - Orient Display

Description: Character Display Module Transflective 7-Segment TN - Twisted Nematic Without Backlight 69.58mm x 38.10mm x 2.80mm

Download OD-3516 Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this OD-3516 model

Email notifications will be applied after download.

Send part feedback

Symbol

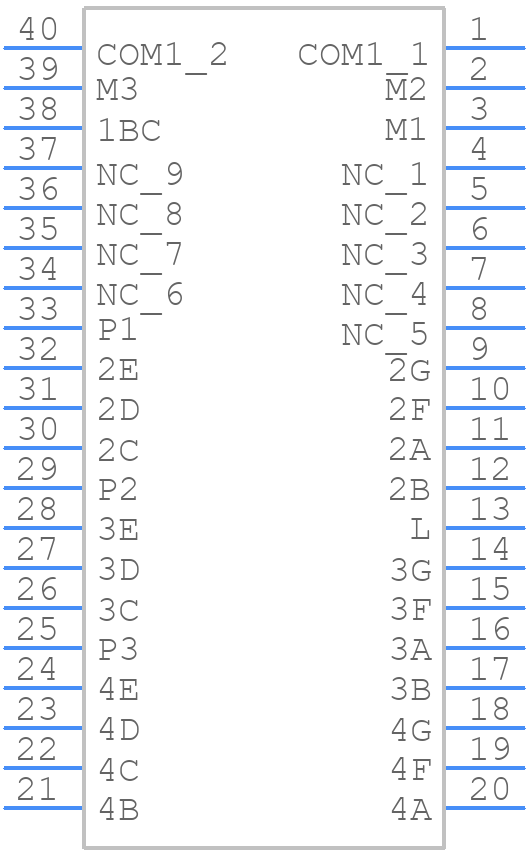

OD-3516 - Orient Display - PCB symbol

PCB Footprints

OD-3516 - Orient Display PCB footprint - Other - Other - 69.58mm x 38.10mm x 2.80mm

Datasheet Download Datasheet
Stock & Prices Price & Stock for OD-3516
Part Number OD-3516
Manufacturer Orient Display
Pin Count 40
Part Category Display
Package Category Other
Footprint Name Other - 69.58mm x 38.10mm x 2.80mm
Released Date Jan 25, 2025
Last Modified Date Dec 3, 2025 8:48 PM UTC
Pinout / Pin List Click Here (Member Only)

OD-3516 Details

Manufacturer Part Number:
OD-3516
Manufacturer:
Orient Display Ltd

Trust Checks

Community Provided

System Verified

Community Approved

OD-3516 Overview

Use the download button to access the OD-3516 schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like OD-35, or try a keyword search, such as Fans/Blowers
