- Part Number ODIN-W262-05B
- Manufacturer u-blox
- Pin Count 103
- Part Category Integrated Circuit
- Package Category Other
- Footprint Name Other - ODIN-W262-05B-2
- Released Date Dec 17, 2019
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
ODIN-W262-05B Details
-
Manufacturer Part Number:
ODIN-W262-05B
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
Package Description:
MODULE-103
-
HTS Code:
8542.31.00.30
-
Factory Lead Time:
12 Weeks
-
Date Of Intro:
2018-07-25
-
Manufacturer:
u-blox AG
-
YTEOL:
0
-
JESD-30 Code:
R-XXMA-N103
-
Length:
22.3 mm
ODIN-W262-05B Frequently Asked Questions (FAQs)
-
u-blox provides a reference design and layout guidelines in their documentation, which should be followed to ensure optimal performance and minimize interference. Additionally, a 4-layer PCB with a solid ground plane is recommended.
-
To minimize power consumption, configure the module to use the lowest possible power mode (e.g., power save mode) when not transmitting or receiving data. Additionally, adjust the transmission power and data rate according to your application's requirements.
-
The ODIN-W262-05B is rated for operation from -40°C to +85°C, but it's recommended to operate within -20°C to +70°C for optimal performance and reliability.
-
Use a high-quality antenna with a good radiation pattern, and place it in a location that minimizes interference from other components. Ensure the antenna is properly matched to the module's impedance, and consider using a dedicated antenna design or consulting with an RF expert.
-
Use u-blox's proprietary tools, such as the u-blox C027 and the u-blox RNDIS driver, for firmware updates and debugging. Additionally, consult the u-blox documentation for specific guidance on using these tools.
Trust Checks
Expert Contribution
System Verified
Community Approved
ODIN-W262-05B Overview

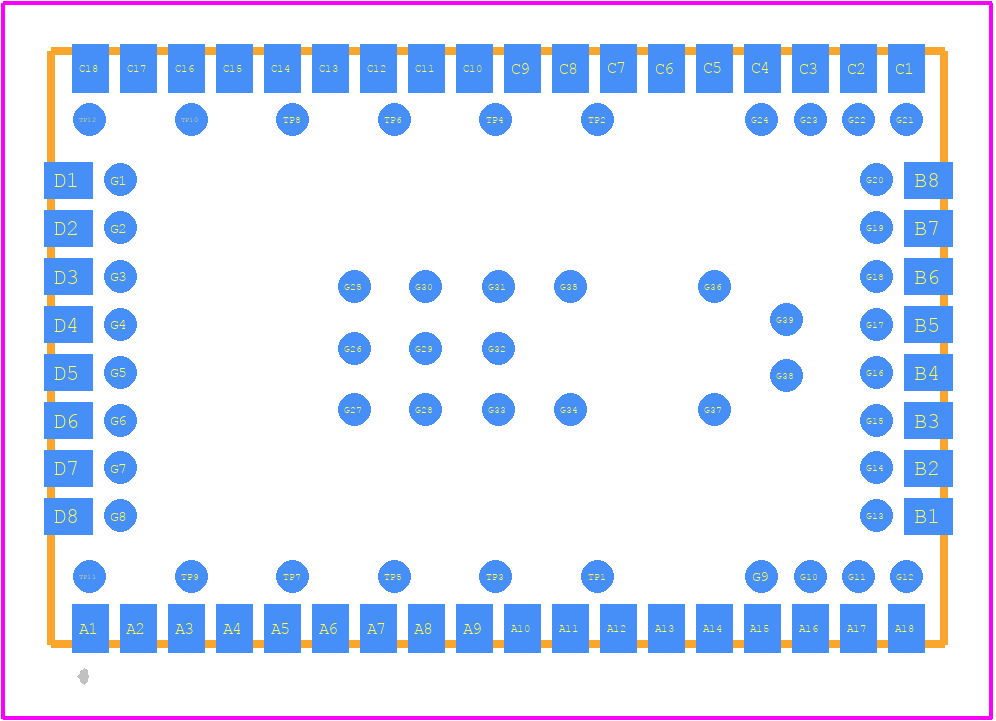

Use the download button to access the ODIN-W262-05B schematic symbol, PCB footprint, and 3D model.
