OJE-SS-103HM,000 footprint, schematic symbol and 3D model by TE Connectivity

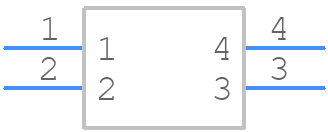

Symbol

click to zoom

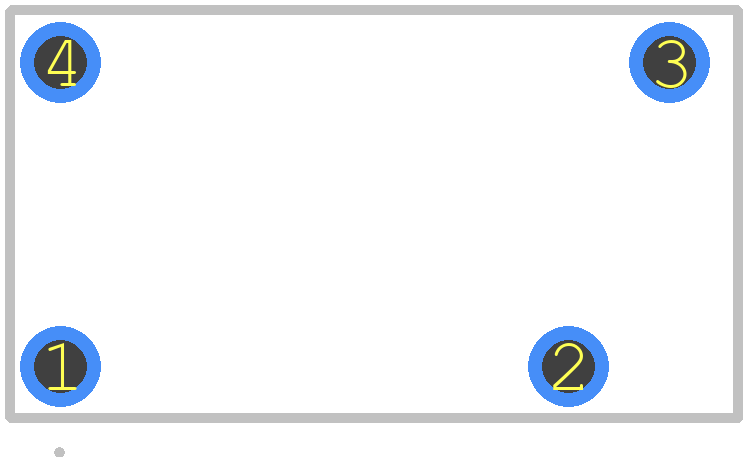

PCB Footprints

OJE-SS-103HM,000 - TE Connectivity PCB footprint - Other - Other - OJE

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for OJE-SS-103HM,000
Part Number OJE-SS-103HM,000
Manufacturer TE Connectivity
Pin Count 4
Part Category Relay or Contactor
Package Category Other
Footprint Name Other - OJE
Released Date May 5, 2017
Last Modified Date Feb 28, 2025 5:43 PM UTC
Pinout / Pin List Click Here (Member Only)

OJE-SS-103HM,000 Details

Manufacturer Part Number:
OJE-SS-103HM,000
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8536.41.00.20
Factory Lead Time:
15 Weeks, 3 Days
Manufacturer:
TE Connectivity
YTEOL:
5.5
Body Breadth:
10.2 mm
Body Height:
14.7 mm
Body Length or Diameter:
18.2 mm
Coil Power:
450 mW
Coil Resistance:
20 Ω
Coil Voltage(DC)-Max:
3 V
Contact Current(AC)-Max:
10 A
Contact Current(DC)-Max:
10 A
Contact Voltage(AC)-Max:
277 V
Contact Voltage(DC)-Max:
30 V
Dielectric Strength Between Coil and Contacts:
3000 Vrms
Dielectric Strength Between Open Contacts:
750 Vrms
End Contact Material:
SILVER
Mounting Feature:
PANEL MOUNT
Operating Temperature-Max:
105 °C
Operating Temperature-Min:
-40 °C
Packing Method:
BOX; TRAY
Relay Action:
MOMENTARY
Relay Form:
1 FORM A
Relay Type:
POWER/SIGNAL RELAY
Surface Mount:
NO
Termination Type:
SOLDER/QUICK CONNECT
Weight:
9 g

OJE-SS-103HM,000 Frequently Asked Questions (FAQs)

The recommended torque value is 0.5 Nm to 1.5 Nm (0.37 lb-in to 1.06 lb-in) for the screw terminals.
Yes, the OJE-SS-103HM,000 is designed to withstand high-vibration environments, making it suitable for use in applications such as industrial control systems, transportation, and aerospace.
While the datasheet specifies 24 AWG wire, the connector can accommodate wire sizes ranging from 20 AWG to 26 AWG, but the wire stripping length and insulation diameter may need to be adjusted accordingly.
The OJE-SS-103HM,000 can operate in temperatures ranging from -40°C to 125°C (-40°F to 257°F), making it suitable for use in a wide range of environments.
Yes, the OJE-SS-103HM,000 has a sealed construction that provides protection against moisture and humidity, with an IP67 rating, making it suitable for use in harsh environments.

Trust Checks

Community Provided

System Verified

Community Approved

OJE-SS-103HM,000 Overview

Use the download button to access the OJE-SS-103HM,000 schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like OJE-S, or try a keyword search, such as Power/Signal Relays
