OKL-T/3-W12P-C - Murata Electronics

Description: Non-Isolated PoL Module DC DC Converter 1 Output 0.591 ~ 5.5V - - 3A 4.5V - 14V Input

Download OKL-T/3-W12P-C Model

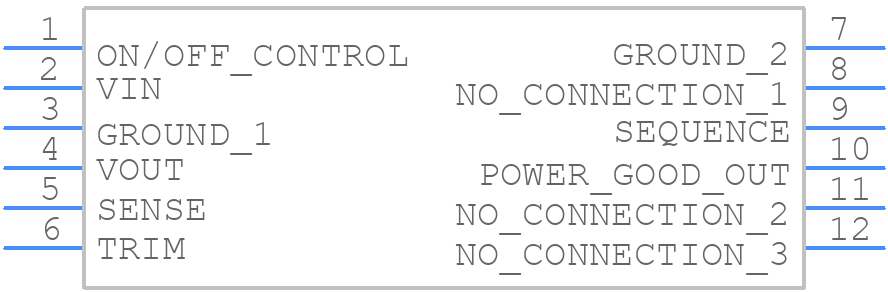

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download

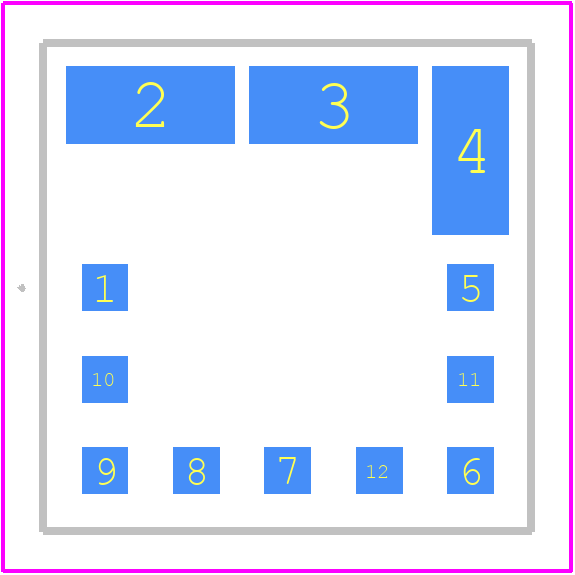

PCB Footprints
OKL-T/3-W12P-C - Murata Electronics PCB footprint - Other - Other - MURATA_POWER_SOLUTIONS_INC_OKL-T-3-W12P-
click to zoom

OKL-T/3-W12P-C Details

  • Manufacturer Part Number:

    OKL-T/3-W12P-C

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SFM

  • Package Description:

    ROHS COMPLIANT, SMT-12

  • Pin Count:

    12

  • Reach Compliance Code:

    compliant

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    58 Weeks

  • Manufacturer:

    Murata Manufacturing Co Ltd

  • YTEOL:

    7

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Input Voltage-Max:

    14 V

  • Input Voltage-Min:

    4.5 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    S-XXMA-X12

  • Length:

    12.19 mm

  • Load Regulation-Max:

    0.25%

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    12

  • Output Voltage-Max:

    5.5 V

  • Output Voltage-Min:

    0.591 V

  • Output Voltage-Nom:

    5 V

  • Package Body Material:

    UNSPECIFIED

  • Package Shape:

    SQUARE

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    6.2 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Terminal Form:

    UNSPECIFIED

  • Terminal Position:

    UNSPECIFIED

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Total Power Output-Max:

    15 W

  • Trim/Adjustable Output:

    YES

  • Width:

    12.19 mm

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

OKL-T/3-W12P-C Overview

Use the download button to access the OKL-T/3-W12P-C schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like OKL-T, or try a keyword search, such as Power Supply Modules
