OP270GSZ - Analog Devices

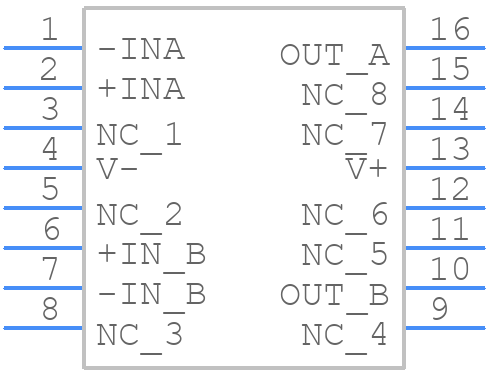

OP270GSZ Details

• Manufacturer Part Number:

  OP270GSZ

• Brand Name:

  Analog Devices Inc

• Pbfree Code:

  No

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Not Recommended

• Part Package Code:

  SOIC

• Package Description:

  PLASTIC, MS-013AA, SOIC-16

• Pin Count:

  16

• Manufacturer Package Code:

  RW-16

• Country Of Origin:

  Taiwan

• ECCN Code:

  EAR99

• HTS Code:

  8542.33.00.01

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  3

• Amplifier Type:

  OPERATIONAL AMPLIFIER

• Architecture:

  VOLTAGE-FEEDBACK

• Average Bias Current-Max (IIB):

  0.08 µA

• Bias Current-Max (IIB) @25C:

  0.06 µA

• Common-mode Reject Ratio-Min:

  90 dB

• Common-mode Reject Ratio-Nom:

  100 dB

• Frequency Compensation:

  YES

• Input Offset Voltage-Max:

  400 µV

• JESD-30 Code:

  R-PDSO-G16

• JESD-609 Code:

  e3

• Length:

  10.3 mm

• Low-Bias:

  NO

• Low-Offset:

  YES

• Micropower:

  NO

• Moisture Sensitivity Level:

  1

• Neg Supply Voltage Limit-Max:

  -18 V

• Neg Supply Voltage-Nom (Vsup):

  -15 V

• Number of Functions:

  2

• Number of Terminals:

  16

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SOP

• Package Equivalence Code:

  SOP16,.4

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE

• Peak Reflow Temperature (Cel):

  260

• Power:

  YES

• Programmable Power:

  NO

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  2.65 mm

• Slew Rate-Min:

  1.7 V/us

• Slew Rate-Nom:

  2.4 V/us

• Supply Current-Max:

  7.2 mA

• Supply Voltage Limit-Max:

  18 V

• Supply Voltage-Nom (Vsup):

  15 V

• Surface Mount:

  YES

• Technology:

  BIPOLAR

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Matte Tin (Sn)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  30

• Unity Gain BW-Nom:

  5000

• Voltage Gain-Min:

  350000

• Wideband:

  NO

• Width:

  7.5 mm
