Part Image

OP90GSZ-REEL7 - Analog Devices

Description: 8-SOP

Download OP90GSZ-REEL7 Model

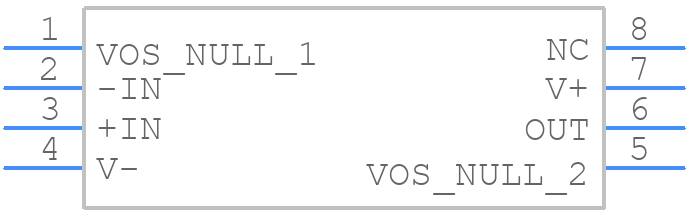

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
OP90GSZ-REEL7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - (R-8)
click to zoom
3D Models
OP90GSZ-REEL7 - Analog Devices  - 3D model - Small Outline Packages - (R-8)
click to zoom

OP90GSZ-REEL7 Details

  • Manufacturer Part Number:

    OP90GSZ-REEL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    SOIC

  • Package Description:

    PLASTIC, SO-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    R-8

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    3

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.025 µA

  • Bias Current-Max (IIB) @25C:

    0.025 µA

  • Common-mode Reject Ratio-Min:

    80 dB

  • Common-mode Reject Ratio-Nom:

    110 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    675 µV

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Low-Bias:

    YES

  • Low-Offset:

    YES

  • Micropower:

    YES

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage Limit-Max:

    -18 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR, 7 INCH

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Slew Rate-Min:

    0.005 V/us

  • Slew Rate-Nom:

    0.012 V/us

  • Supply Current-Max:

    0.03 mA

  • Supply Voltage Limit-Max:

    18 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    20

  • Voltage Gain-Min:

    100000

  • Wideband:

    NO

  • Width:

    3.9 mm

OP90GSZ-REEL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the OP90GSZ involves keeping the input and output traces short and symmetrical, using a solid ground plane, and minimizing parasitic capacitance and inductance. A 4-layer PCB with a dedicated analog ground plane is recommended.
  • To ensure stability, ensure that the gain and phase margins are sufficient, and the phase shift around the loop is less than 180 degrees. Also, use a compensation capacitor (e.g., 10nF) between the output and the inverting input to prevent oscillations.
  • The maximum power dissipation of the OP90GSZ is 1.4W, assuming a junction temperature of 150°C. However, it's recommended to derate the power dissipation based on the ambient temperature and thermal resistance of the package.
  • Yes, the OP90GSZ can be used as a unity-gain buffer. However, it's essential to ensure that the input impedance is high enough to prevent loading effects, and the output impedance is low enough to drive the load. A feedback resistor (e.g., 1kΩ) may be required to stabilize the output.
  • To protect the OP90GSZ from ESD and overvoltage, use ESD protection diodes (e.g., TVS diodes) at the input and output pins. Also, consider adding a voltage clamp or a zener diode to limit the voltage at the input pins.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

OP90GSZ-REEL7 Overview

Use the download button to access the OP90GSZ-REEL7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like OP90G, or try a keyword search, such as Operational Amplifiers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.

Parts related to OP90GSZ-REEL7

Showing 0 results

OP90GSZ-REEL7 Alternates

Showing results

Image Part Number Model
Part Image OP90GS-REEL Rochester Electronics LLC

OP-AMP, 675 uV OFFSET-MAX, 0.02 MHz BAND WIDTH, PDSO8, PLASTIC, MS-012AA, SOIC-8

Part Image OP90GS+ Maxim Integrated Products

Operational Amplifier, 1 Func, 675uV Offset-Max, BIPolar, PDSO8

Part Image OP90GS-REEL7 Analog Devices Inc

Operational Amplifier, 1 Func, 675uV Offset-Max, BIPolar, PDSO8

Part Image OP90GS Analog Devices Inc

Operational Amplifier, 1 Func, 675uV Offset-Max, BIPolar, PDSO8

Part Image OP90GS-REEL Analog Devices Inc

Operational Amplifier, 1 Func, 675uV Offset-Max, BIPolar, PDSO8

For a full list of alternate parts for OP90GSZ-REEL7, check out Findchips.com
