The recommended torque is 0.5-1.5 in-lbs (0.056-0.169 Nm) for the screws on the OPP-07-01-T-S-M-AD connector, as specified in the Samtec application notes.
Yes, the OPP-07-01-T-S-M-AD connector is designed to withstand vibration and shock, with a rating of 10-2000 Hz, 10 G peak acceleration, and 10-2000 Hz, 5 G peak acceleration, respectively, according to Samtec's environmental testing.
Yes, the OPP-07-01-T-S-M-AD connector is compatible with lead-free soldering processes, with a peak reflow temperature of 260°C (500°F) and a process window of 240-260°C (464-500°F).
The maximum operating temperature of the OPP-07-01-T-S-M-AD connector is 125°C (257°F), as specified in the Samtec datasheet.
The OPP-07-01-T-S-M-AD connector has a moisture sensitivity level (MSL) of 1, which means it can withstand normal humidity levels, but it's not designed for immersion in water or exposure to high humidity environments.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
OPP-07-01-T-S-M-AD Overview

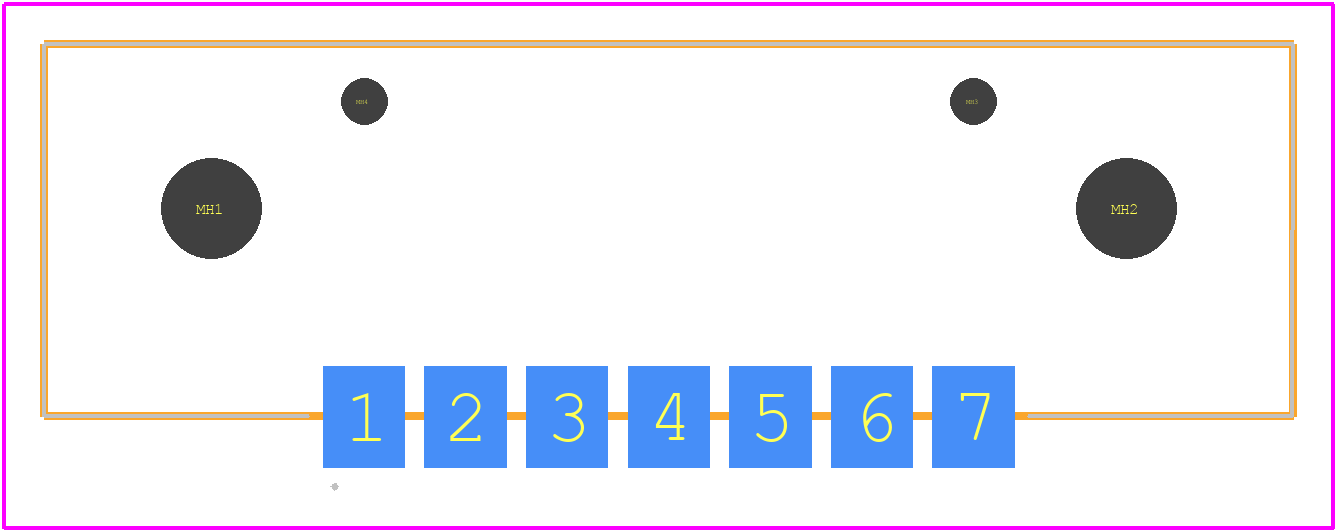

Use the download button to access the OPP-07-01-T-S-M-AD schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like OPP-0,
or try a keyword search, such as Headers and Edge Type Connectors
