OQ0653500000G - Amphenol

Description: Position Terminal Block Header, Male Pins, Shrouded (2 Side) 0.200" (5.08mm) 90°, Right Angle Through Hole

Download OQ0653500000G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
OQ0653500000G - Amphenol - PCB symbol
click to zoom
PCB Footprints

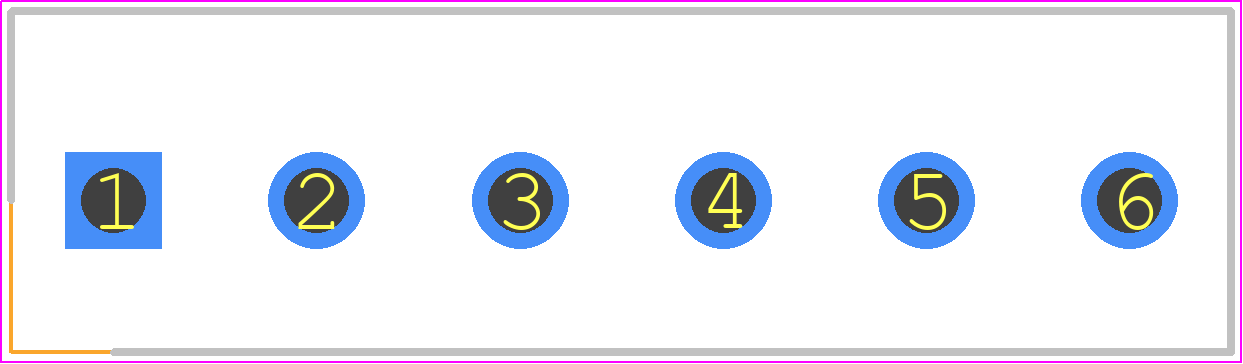

OQ0653500000G - Amphenol PCB footprint - Header, Shrouded - Straight PTH Box - Header, Shrouded - Straight PTH Box - OQ0653500000G
click to zoom
3D Models
OQ0653500000G - Amphenol - 3D model - Header, Shrouded - Straight PTH Box - OQ0653500000G
click to zoom

OQ0653500000G Details

  • Manufacturer Part Number:

    OQ0653500000G

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Amphenol Corporation

  • YTEOL:

    8

  • Additional Feature:

    STANDARD: UL 94V-0, POLYBUTYLENE TEREPHTHALATE

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    6

  • Rated Current:

    20 A

  • Rated Voltage:

    300 V

  • Safety Approval:

    CUL; TUV; UL

  • Terminal and Terminal Block Type:

    STRIP TERMINAL BLOCK

OQ0653500000G Frequently Asked Questions (FAQs)

  • The operating temperature range for the OQ0653500000G connector is -40°C to 125°C.
  • Yes, the OQ0653500000G connector is designed to withstand high-vibration environments, making it suitable for applications such as aerospace, defense, and industrial automation.
  • The OQ0653500000G connector has a mating cycle life of 500 cycles minimum.
  • Yes, the OQ0653500000G connector is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant, meeting the requirements for environmental sustainability.
  • The recommended torque for the OQ0653500000G connector is 0.5 Nm to 1.5 Nm (5 in-lbs to 13 in-lbs).

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

OQ0653500000G Overview

Use the download button to access the OQ0653500000G schematic symbol, PCB footprint, and 3D model.
