OQ0654500000G - Amphenol

Description: Pluggable Terminal Blocks 508 TB SKT CLOSE VER

Download OQ0654500000G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
OQ0654500000G - Amphenol - PCB symbol
click to zoom
PCB Footprints

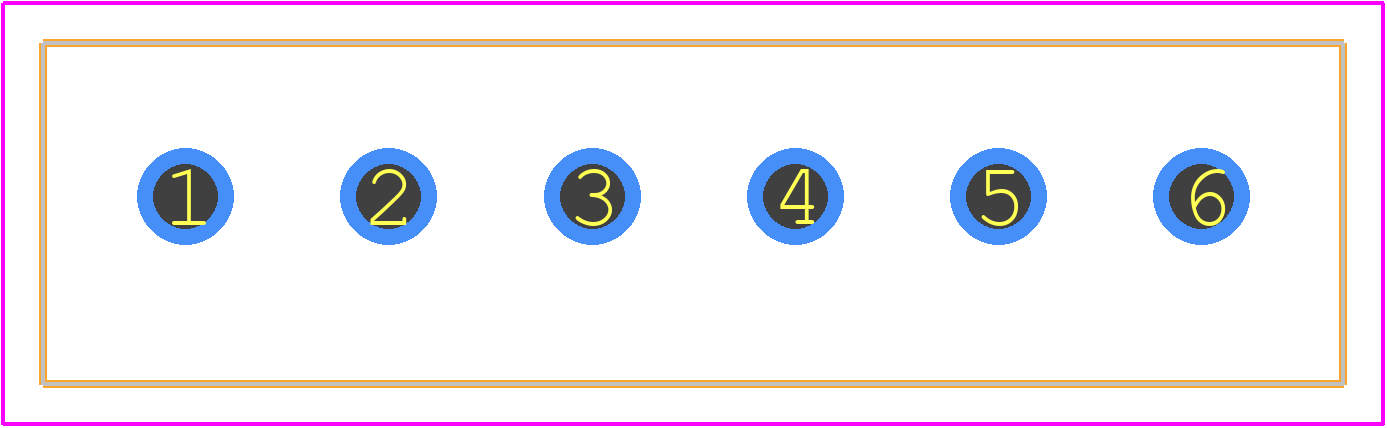

OQ0654500000G - Amphenol PCB footprint - Other - Other - OQ0654500000G-1
click to zoom
3D Models
OQ0654500000G - Amphenol - 3D model - Other - OQ0654500000G-1
click to zoom

OQ0654500000G Details

  • Manufacturer Part Number:

    OQ0654500000G

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Amphenol Corporation

  • YTEOL:

    8

  • Additional Feature:

    STANDARD: UL 94V-0, POLYETHYLENE

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    6

  • Rated Current:

    20 A

  • Rated Voltage:

    300 V

  • Safety Approval:

    CUL; TUV; UL

  • Terminal and Terminal Block Type:

    STRIP TERMINAL BLOCK
