OQ0671500000G - Amphenol

Description: Pluggable Terminal Blocks 500 TB SKT CLOSE VER

Download OQ0671500000G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
OQ0671500000G - Amphenol - PCB symbol
click to zoom
PCB Footprints

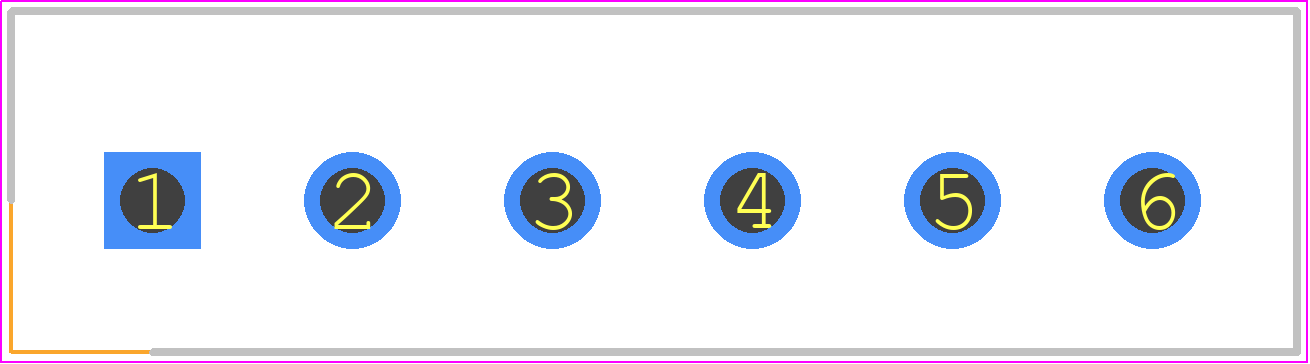

OQ0671500000G - Amphenol PCB footprint - Header, Shrouded - Straight PTH Box - Header, Shrouded - Straight PTH Box - OQ0671500000G
click to zoom
3D Models
OQ0671500000G - Amphenol - 3D model - Header, Shrouded - Straight PTH Box - OQ0671500000G
click to zoom

OQ0671500000G Details

  • Manufacturer Part Number:

    OQ0671500000G

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Amphenol Corporation

  • YTEOL:

    8

  • Additional Feature:

    STANDARD: 94V-0, POLYETHYLENE

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    6

  • Rated Current:

    20 A

  • Rated Voltage:

    300 V

  • Safety Approval:

    CUL; TUV; UL; VDE

  • Terminal and Terminal Block Type:

    STRIP TERMINAL BLOCK

OQ0671500000G Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-0.7 Nm (5-7 in-lbs) to ensure secure connections.
  • Yes, the OQ0671500000G is designed to withstand high-vibration environments, making it suitable for use in aerospace, defense, and industrial applications.
  • Yes, the OQ0671500000G is designed to operate in harsh environments, with a temperature range of -55°C to 125°C and humidity up to 95% RH.
  • The OQ0671500000G has a mating cycle life of 500 cycles, ensuring reliable connections over an extended period.
  • Yes, the OQ0671500000G is part of Amphenol's OQ series, which is designed to be compatible with other Amphenol products, such as backshells and cable assemblies.
