OQ0815510000G - Amphenol

Description: Pluggable Terminal Blocks OQ-3.5- 8P Green ; CONTACT WITH TIN PLATED @ MARK 90

Download OQ0815510000G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
OQ0815510000G - Amphenol - PCB symbol
click to zoom
PCB Footprints

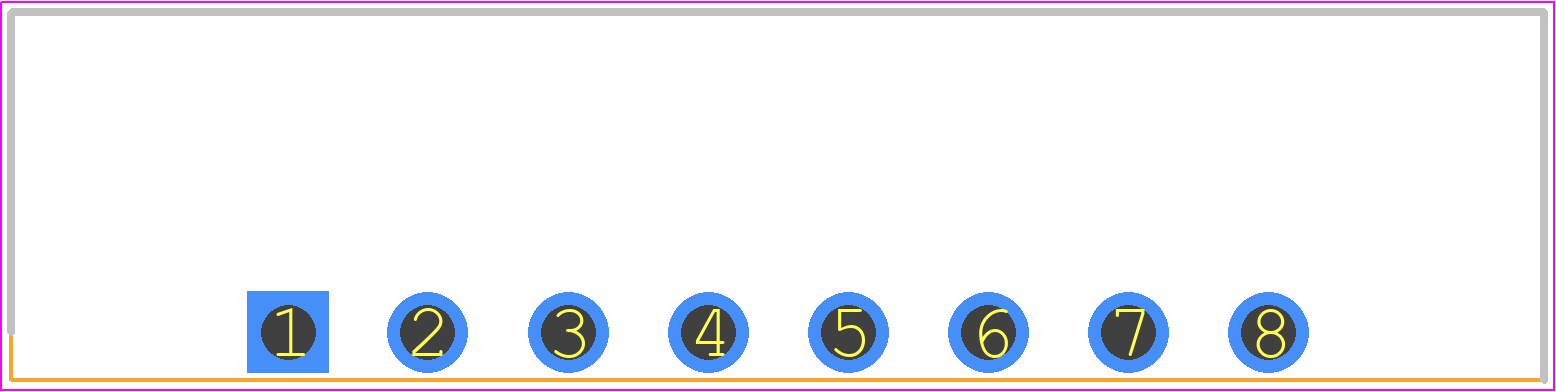

OQ0815510000G - Amphenol PCB footprint - Header, Shrouded - Right Angle PTH Box - Header, Shrouded - Right Angle PTH Box - OQ0815510000G
click to zoom
3D Models
OQ0815510000G - Amphenol - 3D model - Header, Shrouded - Right Angle PTH Box - OQ0815510000G
click to zoom

OQ0815510000G Details

  • Manufacturer Part Number:

    OQ0815510000G

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Amphenol Corporation

  • YTEOL:

    8

  • Additional Feature:

    STANDARD: UL 94V-0, POLYETHYLENE

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    8

  • Rated Current:

    10 A

  • Rated Voltage:

    300 V

  • Safety Approval:

    CUL; UL; VDE

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK
