OQ0854510000G - Amphenol

Description: Pluggable Terminal Blocks 508 TB SKT CLOSE RA

Download OQ0854510000G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
OQ0854510000G - Amphenol - PCB symbol
click to zoom
PCB Footprints

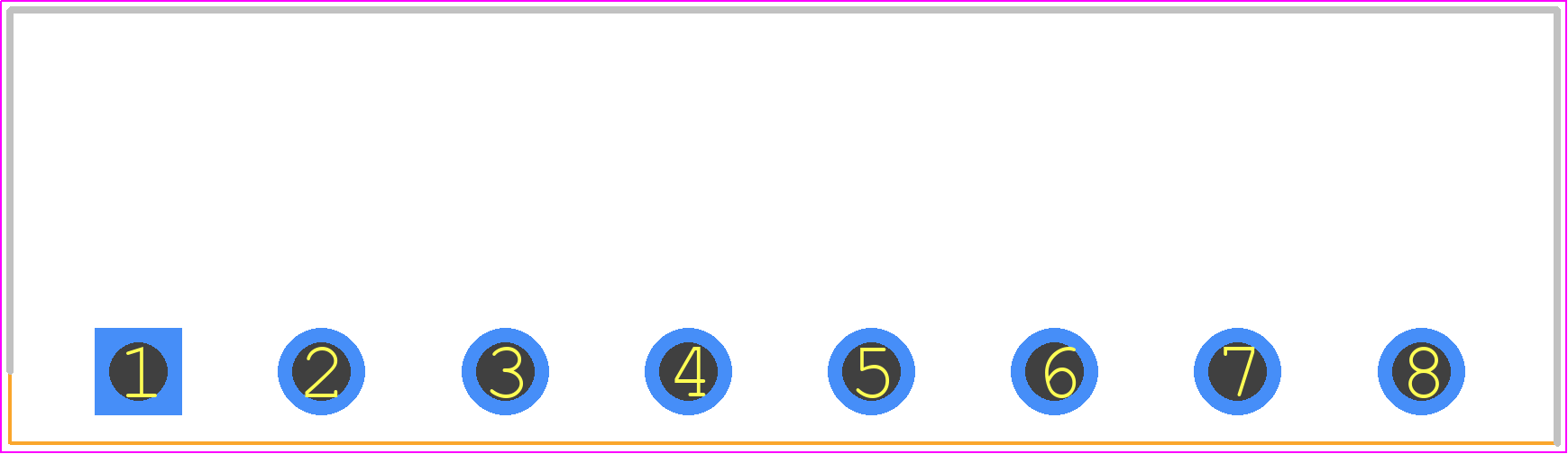

OQ0854510000G - Amphenol PCB footprint - Header, Shrouded - Right Angle PTH Box - Header, Shrouded - Right Angle PTH Box - OQ0854510000G
click to zoom
3D Models
OQ0854510000G - Amphenol - 3D model - Header, Shrouded - Right Angle PTH Box - OQ0854510000G
click to zoom

OQ0854510000G Details

  • Manufacturer Part Number:

    OQ0854510000G

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Amphenol Corporation

  • YTEOL:

    8

  • Additional Feature:

    STANDARD: UL 94V-0, POLYETHYLENE

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    8

  • Rated Current:

    20 A

  • Rated Voltage:

    300 V

  • Safety Approval:

    CUL; TUV; UL

  • Terminal and Terminal Block Type:

    STRIP TERMINAL BLOCK

OQ0854510000G Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-1.5 Nm (4.4-13.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the terminals.
  • Yes, the OQ0854510000G is designed to withstand high-vibration environments. Amphenol Corporation's OQ series connectors are built with ruggedized construction and meet the requirements of MIL-DTL-5015, making them suitable for use in harsh environments.
  • The OQ0854510000G has an operating temperature range of -55°C to 125°C (-67°F to 257°F). This makes it suitable for use in a wide range of applications, from extreme cold to high-temperature environments.
  • Yes, the OQ0854510000G is designed to operate in high-humidity environments. The connector's materials and construction are resistant to moisture and corrosion, making it suitable for use in applications where humidity is a concern.
  • The OQ0854510000G is rated for a maximum current of 13A per contact. While it can handle moderate current levels, it's not suitable for extremely high-current applications. Be sure to check the datasheet and consult with Amphenol Corporation or a qualified engineer if you have specific current requirements.
