OQ0912500000G - Amphenol

Description: Pluggable Terminal Blocks 350 TB SKT VERTICAL

Download OQ0912500000G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
OQ0912500000G - Amphenol - PCB symbol
click to zoom
PCB Footprints

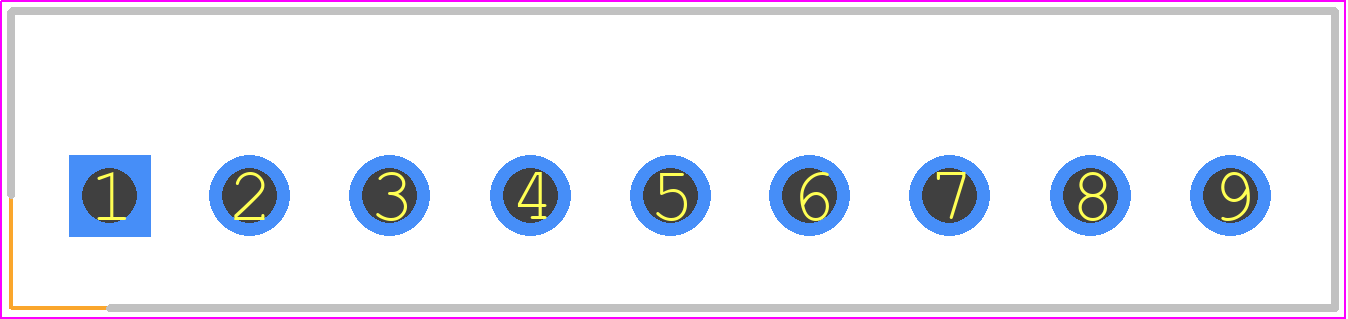

OQ0912500000G - Amphenol PCB footprint - Header, Shrouded - Straight PTH Box - Header, Shrouded - Straight PTH Box - OQ0912500000G
click to zoom
3D Models
OQ0912500000G - Amphenol - 3D model - Header, Shrouded - Straight PTH Box - OQ0912500000G
click to zoom

OQ0912500000G Details

  • Manufacturer Part Number:

    OQ0912500000G

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Amphenol Corporation

  • YTEOL:

    7.97

  • Additional Feature:

    STANDARD: UL 94V-0, POLYETHYLENE

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    9

  • Rated Current:

    10 A

  • Rated Voltage:

    300 V

  • Safety Approval:

    CUL; UL; VDE

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

OQ0912500000G Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-0.7 Nm (5-7 in-lbs) to ensure secure connections.
  • Yes, the OQ0912500000G is designed to withstand vibrations up to 10g (IEC 61373 Cat. 2) and is suitable for use in high-vibration environments.
  • Yes, the OQ0912500000G has a IP67 rating, making it suitable for outdoor use and able to withstand exposure to water and dust.
  • The OQ0912500000G has an operating temperature range of -40°C to +125°C, making it suitable for use in a wide range of applications.
  • While the datasheet specifies AWG 24-16, the connector can accommodate wire sizes from AWG 20 to AWG 14 with the use of appropriate wire adapters or terminals.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

OQ0912500000G Overview

Use the download button to access the OQ0912500000G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like OQ091, or try a keyword search, such as Terminals and Terminal Blocks
