Part Image

OQ1035510000G - Amphenol

Description: Pluggable Terminal Blocks OQ-3.81- 10P Green ; CONTACT WITH TIN PLATED @ MARK 90

Download OQ1035510000G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
OQ1035510000G - Amphenol - PCB symbol
click to zoom
PCB Footprints

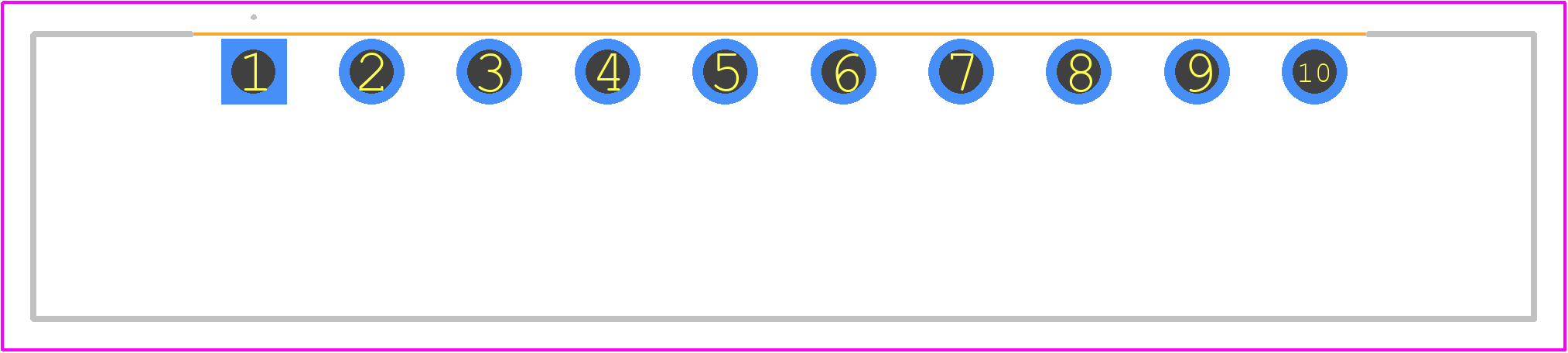

OQ1035510000G - Amphenol PCB footprint - Other - Other - OQ1035510000G-3
click to zoom
3D Models
OQ1035510000G - Amphenol - 3D model - Other - OQ1035510000G-3
click to zoom

OQ1035510000G Details

  • Manufacturer Part Number:

    OQ1035510000G

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Amphenol Corporation

  • YTEOL:

    8

  • Additional Feature:

    STANDARD: UL 94V-0, POLYETHYLENE

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    10

  • Rated Current:

    10 A

  • Rated Voltage:

    300 V

  • Safety Approval:

    CUL; UL; VDE

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

OQ1035510000G Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals of OQ1035510000G is 0.5-0.7 Nm (4.4-6.3 in-lbs).
  • Yes, the OQ1035510000G connector is designed to withstand high-vibration environments, making it suitable for applications such as aerospace, defense, and industrial automation.
  • Yes, the OQ1035510000G connector is designed to operate in harsh environments, with a temperature range of -55°C to 125°C and humidity up to 95% RH. However, it's essential to follow the recommended derating guidelines for high-temperature applications.
  • The OQ1035510000G connector has a mating cycle life of at least 500 cycles, making it suitable for applications that require frequent connections and disconnections.
  • Yes, the OQ1035510000G connector is part of the OQ series, which is designed to be compatible with other Amphenol connectors in the same series. However, it's essential to verify compatibility before using the connector with other Amphenol products.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

OQ1035510000G Overview

Use the download button to access the OQ1035510000G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like OQ103, or try a keyword search, such as Terminals and Terminal Blocks

About Amphenol

Amphenol Corporation is one of the largest manufacturers of interconnect products in the world. Amphenol designs, manufactures, and markets electrical, electronic, and fiber optic connectors, cable assemblies, and interconnect systems. The company serves a wide range of industries, including aerospace, automotive, telecommunications, military and defense, industrial, and consumer electronics.
