OQ1054510000G - Amphenol

Description: Pluggable Terminal Blocks 508 TB SKT CLOSE RA

Download OQ1054510000G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
OQ1054510000G - Amphenol - PCB symbol
click to zoom
PCB Footprints

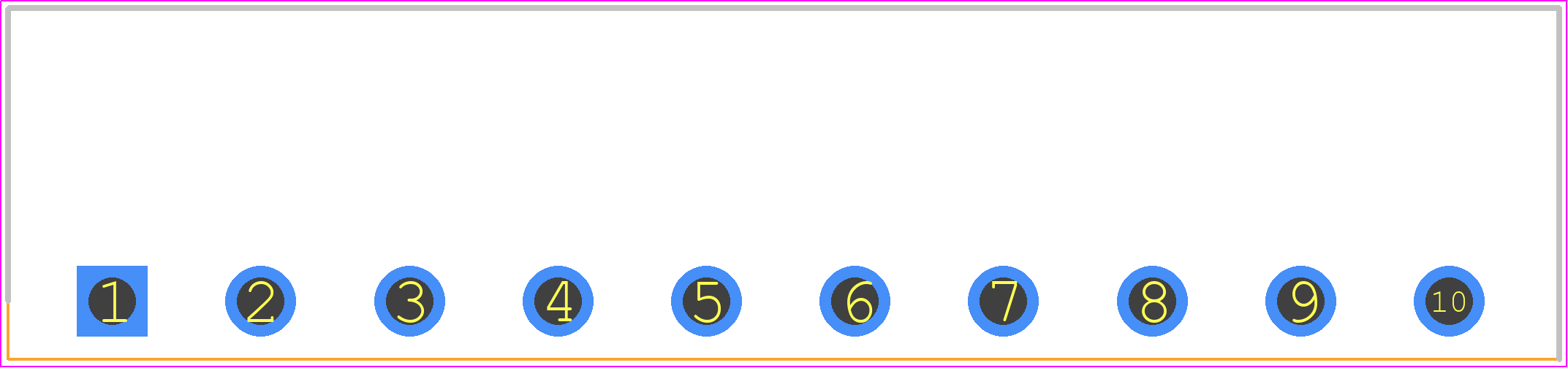

OQ1054510000G - Amphenol PCB footprint - Header, Shrouded - Right Angle PTH Box - Header, Shrouded - Right Angle PTH Box - OQ1054510000G
click to zoom
3D Models
OQ1054510000G - Amphenol - 3D model - Header, Shrouded - Right Angle PTH Box - OQ1054510000G
click to zoom

OQ1054510000G Details

  • Manufacturer Part Number:

    OQ1054510000G

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Amphenol Corporation

  • YTEOL:

    8

  • Additional Feature:

    STANDARD: UL 94V-0, POLYETHYLENE

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    10

  • Rated Current:

    20 A

  • Rated Voltage:

    300 V

  • Safety Approval:

    CUL; TUV; UL

  • Terminal and Terminal Block Type:

    STRIP TERMINAL BLOCK

OQ1054510000G Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5-1.5 Nm (4-12 in-lbs) for the screw locks, and 1-2 Nm (8-16 in-lbs) for the jack screws.
  • Yes, the OQ1054510000G connector is designed to withstand high-vibration environments, with a vibration rating of 10-2000 Hz, 10 G peak acceleration.
  • Yes, the OQ1054510000G connector is designed to operate in harsh environments, with a temperature range of -55°C to 125°C and humidity rating of 95% RH at 40°C.
  • The OQ1054510000G connector has a mating cycle life of 500 cycles minimum, with a maximum of 1000 cycles.
  • Yes, the OQ1054510000G connector is RoHS and REACH compliant, meeting the requirements of EU Directive 2011/65/EU and Regulation (EC) No 1907/2006.
