OQ1232510000G - Amphenol

Description: Pluggable Terminal Blocks 12P 3.81MM HDR RA PLUGGABLE TERM BLK

Download OQ1232510000G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
OQ1232510000G - Amphenol - PCB symbol
click to zoom
PCB Footprints

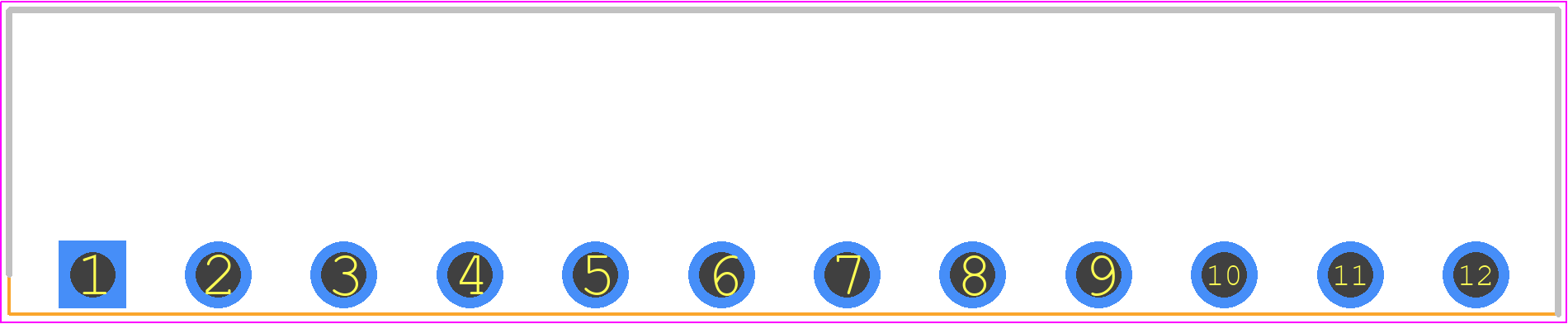

OQ1232510000G - Amphenol PCB footprint - Header, Shrouded - Right Angle PTH Box - Header, Shrouded - Right Angle PTH Box - OQ1232510000G
click to zoom
3D Models
OQ1232510000G - Amphenol - 3D model - Header, Shrouded - Right Angle PTH Box - OQ1232510000G
click to zoom

OQ1232510000G Details

  • Manufacturer Part Number:

    OQ1232510000G

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Amphenol Corporation

  • YTEOL:

    7.97

  • Additional Feature:

    STANDARD: UL 94V-0, POLYETHYLENE

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    12

  • Rated Current:

    10 A

  • Rated Voltage:

    300 V

  • Safety Approval:

    CUL; UL; VDE

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

OQ1232510000G Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-1.5 Nm (4-12 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the OQ1232510000G is designed to withstand high-vibration environments. Amphenol's OQ series connectors are built with ruggedized construction and meet the requirements of MIL-DTL-5015, making them suitable for use in harsh environments.
  • The OQ1232510000G has an operating temperature range of -55°C to 125°C (-65°F to 257°F). This makes it suitable for use in a wide range of applications, from extreme cold to high-temperature environments.
  • Yes, the OQ1232510000G is designed to operate in high-humidity environments. The connector's materials and construction are resistant to moisture and corrosion, making it suitable for use in applications where humidity is a concern.
  • While the OQ1232510000G is designed for use with 20 AWG wire, it can accommodate wire sizes ranging from 18 AWG to 22 AWG. However, it's essential to ensure that the wire size and insulation meet the connector's specifications to maintain reliable connections.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

OQ1232510000G Overview

Use the download button to access the OQ1232510000G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like OQ123, or try a keyword search, such as Terminals and Terminal Blocks

About Amphenol

Amphenol Corporation is one of the largest manufacturers of interconnect products in the world. Amphenol designs, manufactures, and markets electrical, electronic, and fiber optic connectors, cable assemblies, and interconnect systems. The company serves a wide range of industries, including aerospace, automotive, telecommunications, military and defense, industrial, and consumer electronics.
