ORWH-SH-112D,N000 - TE Connectivity

ORWH-SH-112D,N000 Details

• Manufacturer Part Number:

  ORWH-SH-112D,N000

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• ECCN Code:

  EAR99

• HTS Code:

  8536.41.00.20

• Manufacturer:

  TE Connectivity

• YTEOL:

  0

• Body Breadth:

  15.5 mm

• Body Height:

  15.8 mm

• Body Length or Diameter:

  19 mm

• Coil Current(DC)-Max:

  0.04 A

• Coil Operate Voltage(DC):

  8.4 V

• Coil Power:

  360 mW

• Coil Release Voltage(DC):

  1.2 V

• Coil Resistance:

  400 Ω

• Coil Voltage(DC)-Max:

  12 V

• Coil/Input Supply Type:

  DC

• Contact (AC) Max Rating R Load:

  15A@250VAC

• Contact Current(AC)-Max:

  15 A

• Contact Current(DC)-Max:

  10 A

• Contact (DC) Max Rating R Load:

  10A@28VDC

• Contact Voltage(AC)-Max:

  250 V

• Contact Voltage(DC)-Max:

  28 V

• Contact/Output Supply Type:

  AC/DC

• Electrical Life:

  100000 Cycle(s)

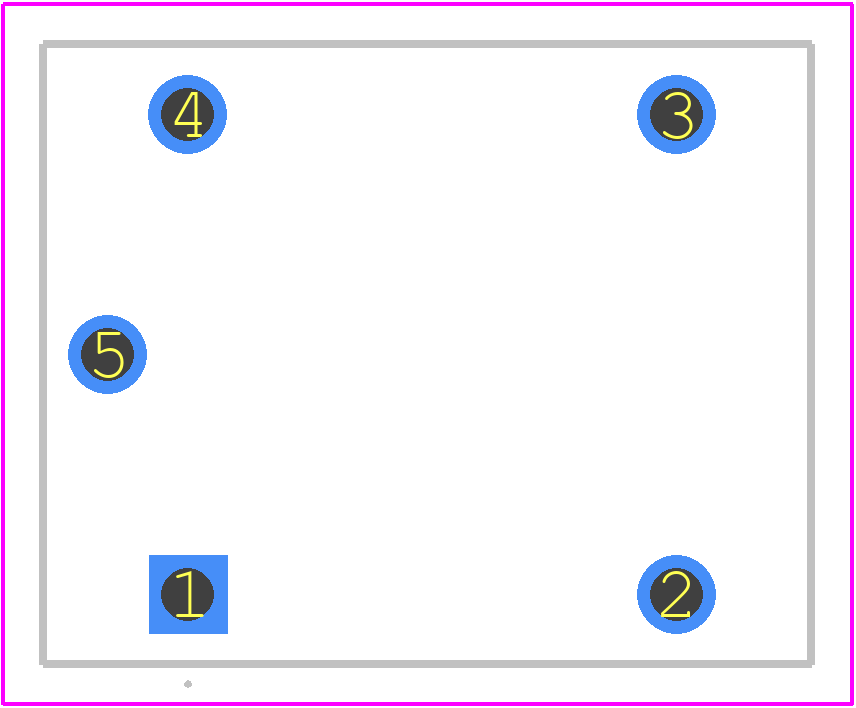

• Mounting Feature:

  THROUGH HOLE-STRAIGHT

• Operate Time:

  10 ms

• Operating Temperature-Max:

  70 °C

• Operating Temperature-Min:

  -30 °C

• Physical Dimension:

  19mm x 15.5mm x 15.8mm

• Reference Standard:

  TUV; UL

• Relay Action:

  MOMENTARY

• Relay Function:

  SPDT

• Relay Type:

  POWER/SIGNAL RELAY

• Release Time:

  5 ms

• Sealing:

  PLASTIC SEALED

• Surface Mount:

  NO

• Termination Type:

  SOLDER
