OSD32MP157C-512M-IAA - Octavo Systems

Description: System-On-Modules - SOM System-in-Package: ST Micro STM32MP157C Dual ARM Cortex A7 + M4 Processor, 512MB DDR3L, STPMIC1A, 4KB EEPROM, 24MHz Oscillator, Passives - 18mm x 18mm 302 Ball BGA - -40 C to 85 C

Download OSD32MP157C-512M-IAA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
OSD32MP157C-512M-IAA - Octavo Systems - PCB symbol
click to zoom
PCB Footprints

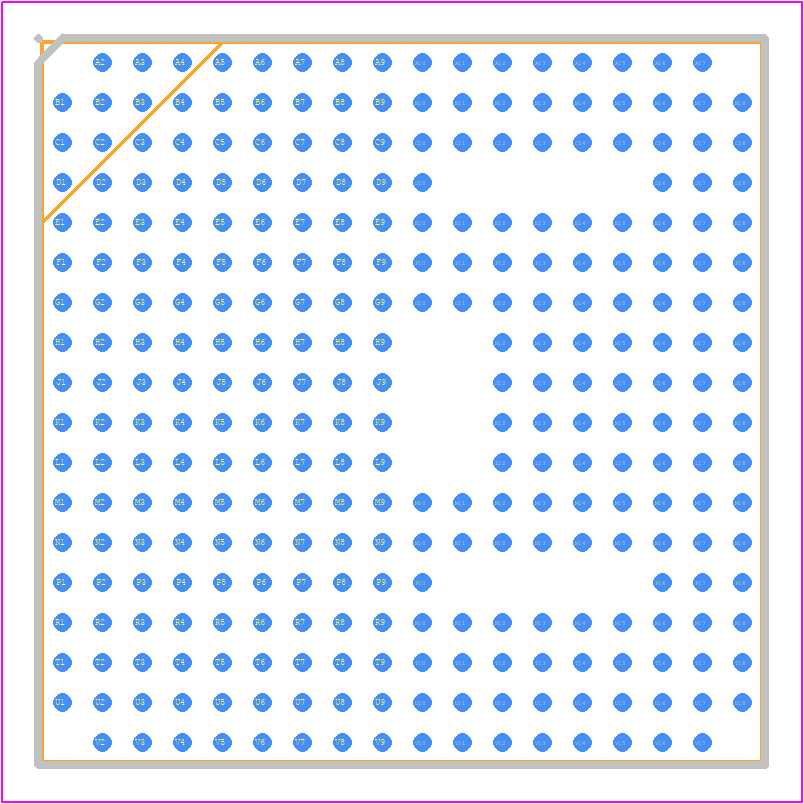

OSD32MP157C-512M-IAA - Octavo Systems PCB footprint - BGA - BGA - OSD32MP15x
click to zoom
3D Models
OSD32MP157C-512M-IAA - Octavo Systems - 3D model - BGA - OSD32MP15x
click to zoom

OSD32MP157C-512M-IAA Details

  • Manufacturer Part Number:

    OSD32MP157C-512M-IAA

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Contact Manufacturer

  • Package Description:

    BGA-302

  • HTS Code:

    8542.31.00.30

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    Octavo Systems LLC

  • JESD-30 Code:

    S-PBGA-B302

  • Length:

    18 mm

  • Number of Terminals:

    302

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    BGA

  • Package Equivalence Code:

    BGA302,18X18,40

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY

  • Seated Height-Max:

    2.4 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    BALL

  • Terminal Pitch:

    1 mm

  • Terminal Position:

    BOTTOM

  • Width:

    18 mm

  • uPs/uCs/Peripheral ICs Type:

    SoC

OSD32MP157C-512M-IAA Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the OSD32MP157C-512M-IAA is -40°C to 85°C.
  • The boot mode for the OSD32MP157C-512M-IAA can be configured using the BOOT_MODE pins. The BOOT_MODE pins are strapped high or low to select the boot mode. The boot mode can be set to boot from the internal flash, external flash, or SD/MMC.
  • The maximum clock frequency for the OSD32MP157C-512M-IAA is 650 MHz.
  • The OSD32MP157C-512M-IAA has a power management unit (PMU) that allows for dynamic voltage and frequency scaling. The PMU can be controlled using the ARM Cortex-A7 processor's clock control registers.
  • The OSD32MP157C-512M-IAA has 512 MB of DDR3L RAM.
